Male DB25 to Female RJ45 adapter
Male DB25 to Female RJ45 adapter

Adapter to Connect a Modem to the SERIMUX

NTI Part #: DB25M-RJ45F-C
DB-25M modem adapter. Adapter to connect a modem to the SERIMUX.

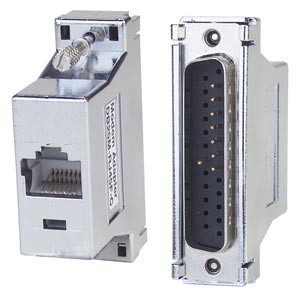

DB-25M modem adapter
  • Male DB25 to Female RJ45 adapter
  • Connect your modem to a SERIMUX console switch using CAT5/5e/6 cable.

Application Notes

  • Pinout Diagram Male DB25 to Female RJ45 for modems
    Pinout Diagram Male DB25 to Female RJ45 for modems
    DB25M-RJ45F-C
    • Male DB25 to Female RJ45 adapter.
    • Connect your modem to a SERIMUX console switch using CAT5 cable.
    Signal Flow Diagram
    From RJ-45 Signal Direction Signal To DB-25
    1 CTS CTS 5
    2 DSR DSR 6
    3 RxD RxD 3
    4 Gnd Gnd 7
    5 DCD DCD 8
    6 TxD TxD 2
    7 DTR DTR 20
    8 RTS RTS 4
