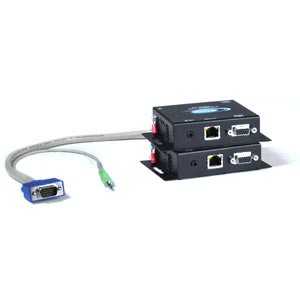

XTENDEX® ST-C5VA-300 (Remote & Local Unit)
XTENDEX® ST-C5VA-300 (Remote & Local Unit)

Additional Images

VGA Video/Audio Extender via CAT5: Extend to 300 feet (91 meters)

NTI Part #: ST-C5V-300-Group
The XTENDEX® VGA Extender transmits VGA video up to 300 feet (91 meters) away from a computer using CAT5/5e/6 cable. The extender supports local and remote monitors, and is available with optional stereo audio. Supports resolutions to 1920x1440.
Also known as: VGA extender, cat5 monitor extender, remote monitor, video balun, extend video, VGA range extender.
Supported Features
  • KVM
  • Audio
  • Designed and Manufactured in the U.S.A.
  • VGA Video/Audio Extender via CAT5: Extend to 300 feet (91 meters)Digital Signage Product
Scroll Down to Get Quote
The XTENDEX® VGA Extender transmits VGA video up to 300 feet (91 meters) away from a computer using CAT5/5e/6 cable. The extender supports local and remote monitors, and is available with optional stereo audio. Supports resolutions to 1920x1440.The XTENDEX® VGA Extender transmits VGA video up to 300 feet (91 meters) away from a computer using CAT5/5e/6 cable. Each video extender consists of a local unit that connects to a computer and also supplies video to a local monitor, and a remote unit that connects to a monitor.
  • Ideal solution for digital signage applications.
  • Supports local and remote VGA monitors.
  • Supports resolutions to 1920x1440.
  • Sharpest and clearest VGA quality over CAT5 of any manufacturer.
  • Built-in surge protection.
  • Available with optional stereo audio.
  • Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.
  • Optional VESA mounting bracket is available for mounting the local or remote unit to the back of a flat panel monitor.
Local Unit
  • Host Connection
    • Supports a PC, SUN, MAC or NTI switch with VGA video.
    • Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
    • Male 15-pin HD connector for computer connection.
    • Optional stereo audio support - 3.5 mm stereo plug.
  • Local Access
    • Crisp and clear 1920x1440 video resolution.
    • Female 15-pin HD connector for local VGA monitor.
    • Optional stereo audio support - 3.5 mm stereo jack.
Remote Unit
  • Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
  • Female 15-pin HD connector.
  • Optional 3.5 mm stereo audio connection.
Video Quality Adjustment
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.
Dimensions:
  • WxDxH: 3.5x3.1x1.2 in (89x79x30 mm)
  • Weight: 1.2 lbs (0.54 kg)
Power
  • Local unit: 110 or 220 VAC at 50 or 60 Hz via AC adapter (included).
  • Remote unit: powered from local unit via CAT5/5e/6 cable.
  • Power Consumption: Local unit: 10 W; Remote unit: powered from local unit
MTBF
MTBF
NTI Part # MTBF (hrs) NTI Part # MTBF (hrs)
ST-C5V-300 (local) 92,988 ST-C5V-300 (remote) 89,275
ST-C5VA-300 (local) 89,874 ST-C5VA-300 (remote) 86,360
Cables
  • CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years
Cable Distances and Resolutions
ST-C5V-300 Distances and Resolutions for CAT5/CAT5e and CAT6 cables
Cable Distance Maximum Resolution
CAT5/ CAT5e Solid UTP 300 feet (91 meters) 1280x1024 at 60 Hz
150 feet (46 meters) 1600x1200 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz
CAT5/ CAT5e Solid STP,
CAT6 Solid UTP
300 feet (91 meters) 1024x768 at 60 Hz
150 feet (46 meters) 1280x1024 at 60 Hz
100 feet (30 meters) 1600x1200 at 60 Hz
CAT6a Solid UTP 300 feet (91 meters) 1024x768 at 60Hz
150 feet (46 meters) 1280x1024 at 60Hz
100 feet (30 meters) 1920x1200 at 60Hz
Note: CAT6 cable has a higher skew than CAT5/5e cable, which causes colors to smear. Since these extenders do not have internal skew compensation, they work at shorter distances with CAT6 cable.

Diagrams

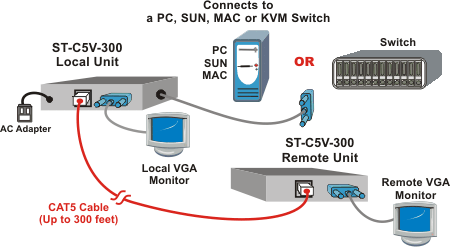

  • VGA Video/Audio Extender via CAT5: Extend to 300 feet (91 meters)
    VGA Video/Audio Extender via CAT5: Extend to 300 feet (91 meters)

CAD Drawings

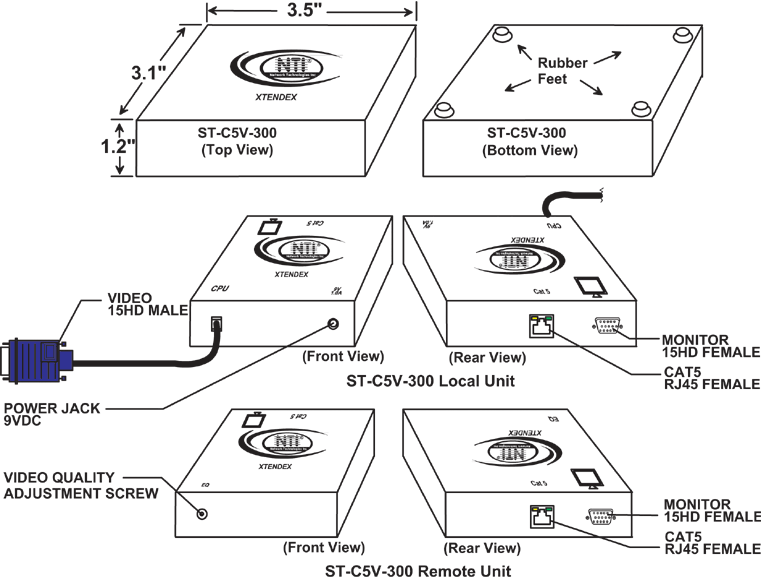

  • ST-C5V-300
    Loading image...

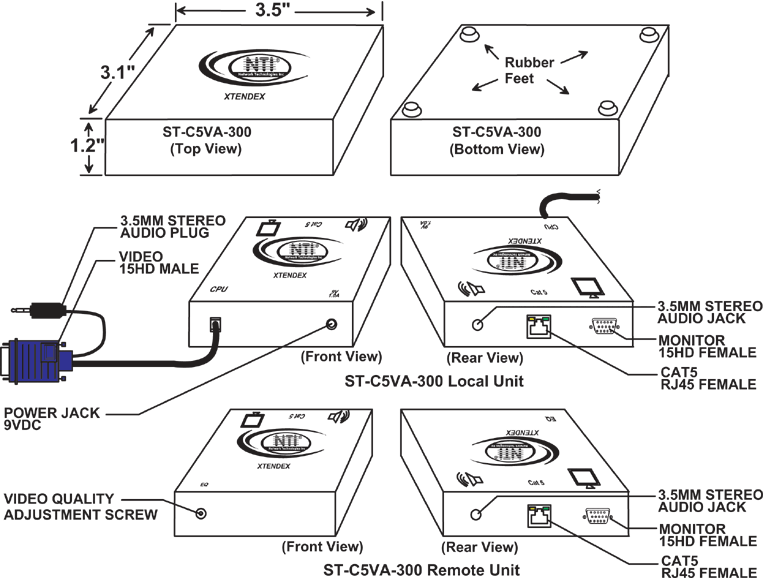

  • ST-C5VA-300
    Loading image...
Stereo Audio
  • Stereo audio can be heard both locally and remotely.
  • Frequency response: 20 Hz to 20 kHz, +/-1 dB.
  • Signal-to-Noise Ratio (SNR): 76 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%.
  • Stereo crosstalk: -70 dB.
  • Input impedance: 10k Ohms.
  • Line level output; supports multimedia speakers.
  • Maximum I/O levels: 3.1Vp-p (line level).
  • CD quality audio output.
  • "We have been using your ST-C5V-300 VGA extender products for some time now and keep adding more because of the good quality and ease of use. The first use was for our Church Sanctuary to run the 3 monitors on the stage for the singers and for the Pastor. We then added an additional extender to power the 42 inch LCD monitor in the hallway so that people that had to leave the sanctuary could still see everything on the overhead projector.

    "Recently we added two more extenders in the Fellowship Hall to power the 65 inch plasma TV/Monitor's and they work great. Later this month we will purchase another extender for the portable sound and video system we are building.

    "Keep up the good work and service."

    Fred Marks
    Destiny Worship Center
    Destin, FL, USA
  • "I would like to thank you and your team for the wonderful experience we’ve had with NTI. When I called you early this week, we had been using a competitor’s product that they would not stand behind and we were in dire need of finding a new solution. Your commitment to help us find a new solution was outstanding. The fact that we were able to talk to your technical staff at length to make sure the solution would work for us speaks volumes to your commitment to your customers.

    "When we received your ST-C5V-300 it did not disappoint. The build quality was top notch and it worked as advertised immediately. The competitor’s product we had been using was more expensive, required lots of adjustments and was a poor quality in comparison. It was refreshing to see a product (and company) that we’ll be able count on for years to come.

    "You and your company’s professionalism and customer service has been some of the best I’ve had the pleasure of dealing with. After this experience, I wouldn’t use anybody but you for these products and will definitely recommend you to others."

    David W. Womble
    Digitec Interactive
    Orlando, FL, USA
  • "We purchased two ST-C5V-300 VGA Video extenders for a recent computer upgrade in an on-air radio studio and absolutely love them both! What a great product, and flawless installation!"

    Brian Hill
    Backyard Broadcasting
    Williamsport, PA, USA
  • "I would like to thank Gabrielle and the entire staff at NTI for providing me with an excellent product (ST-C5V-300), tremendous service, and an overall wonderful experience. I was fast approaching a deadline and Gabrielle answered all my questions and returned all my calls. My project finished on time, thanks to NTI."

    Theo Caramihai
    XL America
    Stanford, CT, USA
  • "The ST-C5VA-300 works awesome – we have used cheaper units in the past but they are no match for the NTI product. We use them all the time to route Video and Audio from the back of the room to the projectors"

    Mark Andrus
    Texas State University
    San Marcos, TX

(0)VGA Extenders

NTI Part # Supported Features Qty
ST-C5V-300 VGA Video
ST-C5VA-300 VGA Video, Stereo Audio
