Fiber Optic DVI Video Extender, DVI to fiber optic exceed maximum DVI cable length balun
ST-1FODVI-SC (Receiver and Transmitter)
ST-1FODVI-SC (Receiver and Transmitter)

Additional Images

DVI Extender via One Multimode Fiber Optic Cable up to 3,280 feet (1,000 meters)

NTI Part #: ST-1FODVI-SC-Group
The XTENDEX® DVI Extender via Fiber Optic Cable locates a single link digital DVI-D display up to 3,280 feet (1,000 meters) from a computer using a single SC multimode (50-micron or 62.5-micron) fiber optic strand. Each extender consists of a transmitter that connects to a computer and a receiver that connects to a monitor.
Also known as: DVI extender, Single Link DVI Optical extension, long DVI, DVI fiber optic extension system, Fiber Optic extender, DVI to fiber optic, exceed maximum DVI cable length, balun
Supported Features
  • DVI
  • DVI Extender via One Multimode Fiber Optic Cable up to 3,280 feet (1,000 meters)Digital Signage Product
Scroll Down to Get Quote

The XTENDEX® DVI Extender via Fiber Optic Cable locates a single link digital DVI-D display up to 3,280 feet (1,000 meters) from a computer using a single SC multimode (50-micron or 62.5-micron) fiber optic strand. Each extender consists of a transmitter that connects to a computer and a receiver that connects to a monitor.

  • Complies with DVI 1.0 standards.
  • Signal transmission via one strand multimode (50-micron or 62.5-micron) SC fiber optic cable – no RF interference.
  • Small form factor – for easy connection and placement.
  • Cables can be installed in conduit prior to extender installation.
  • EDID learning for the support of any DVI display device.
  • Low RFI/EMI for sensitive applications.
  • No software to install.
  • The DVI Optical Extender is the ideal solution for a wide range of applications. Examples include:
    • Remote DVI display monitoring for medical, military, aerospace, industrial and traffic control applications.
    • Digital Flat Panel Displays (FPD), Plasma Display Panels (PDP) and projectors in conference rooms and auditoriums.
    • Kiosks with digital FPDs.
    • Color LED signboards, FPDs and PDPs for information display at stadiums.
  • Connectors (for transmitter and receiver): one male DVI-D single link connector and one SC fiber connector.
  • Supports resolutions up to 1920x1200 (WUXGA); refer to the resolution chart below for resolutions at different lengths.
  • EDID learning for the support of any DVI display device.
  • Low RFI/EMI.
  • Laser Class 1 Safety compliant.
  • Optical source: 850 nm VCSEL.
  • Supports 50/125um SC type multi-mode fiber optic cable.
  • Frequency Bandwidth : 1.65Gbps (Single Link)
Dimensions
  • WxDxH: 1.6x2.6x0.6 in (41x66x15 mm)
Power
  • Local unit: powered from attached computer.
  • Remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US AC adapter included.)

Distances and Resolutions
Cable Distance Maximum Resolution
50-micron 3,280 feet (1,000 meters) 1024x768 (XGA)
2,300 feet (701 meters) 1280x1024 (SXGA)
1,650 feet (503 meters) 1600x1200 (UXGA)
984 feet (300 meters) 1920x1200 (WUXGA)
62.5-micron 3,280 feet (1,000 meters) 1280x1024 at (SXGA)
2,300 feet (701 meters) 1600x1200 at (UXGA)
1,650 feet (503 meters) 1920x1200 at (WUXGA)
Cables
  • Use a simplex multimode SC 50-micron (FIBER-S-SCSC-50-xM) or 62.5-micron multimode fiber optic cable to extend the receiver from the transmitter up to 3,280 feet (1,000 meters).
Environmental
  • Operating Temperature: 32 to 122°F (0 to 50°C).
  • Storage Temperature: -4 to 158°F (-20 to 70°C).
Regulatory Approvals
  • FCC, RoHS
Package Includes
  • DVI optical transmitter.
  • DVI optical receiver.
  • One power supply.
  • User manual.
Warranty
  • Two years

Application Notes

  • DVI Extender via One Multimode Fiber Optic Cable up to 3,280 feet (1,000 meters)
    DVI Extender via One Multimode Fiber Optic Cable up to 3,280 feet (1,000 meters)

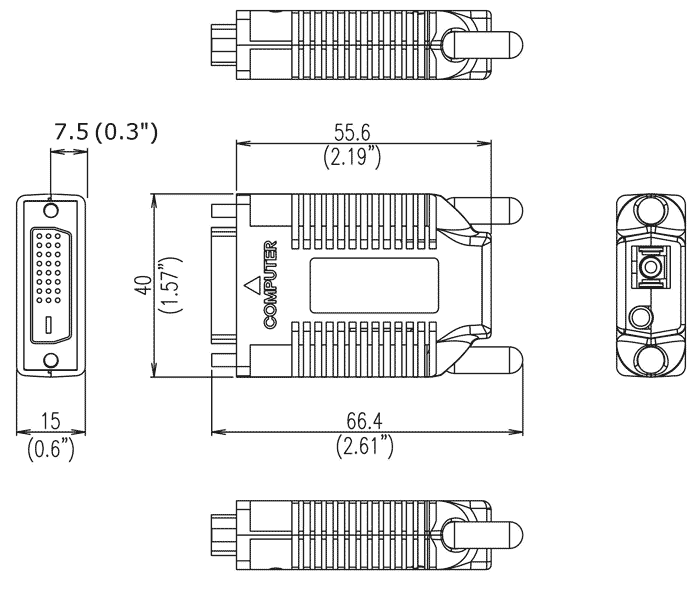

CAD Drawings

  • ST-1FODVI-SC
    Loading image...

(0)DVI Extender via Fiber Optic Cable

NTI Part # Supported Features Qty
ST-1FODVI-SC DVI

Related Items :

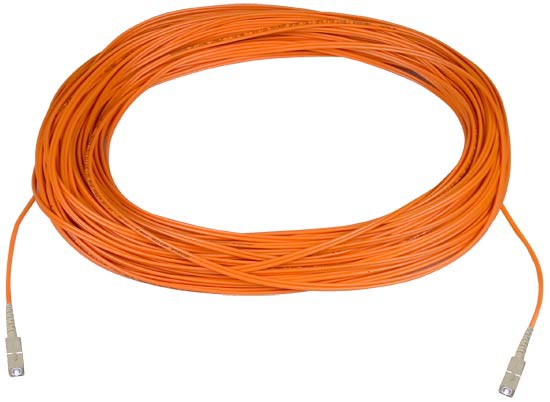

(0)Compatible Simplex 50/125 SC/SC Fiber Optic Cable

NTI Part # Length Qty
FIBER-S-SCSC-50-50M 50 meters
FIBER-S-SCSC-50-100M 100 meters
FIBER-S-SCSC-50-300M 300 meters
FIBER-S-SCSC-50-500M 500 meters
FIBER-S-SCSC-50-700M 700 meters
FIBER-S-SCSC-50-1000M 1000 meters
