DVI USB/PS2 KVM over IP – Remote Server Management

NTI Part #: INTERMUX-KVMDUPIP-Group

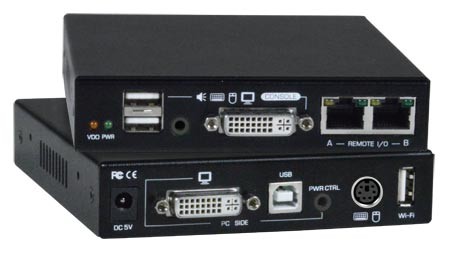

INTERMUX-KVMDUPIP (Front & Back)

NTI Part #: INTERMUX-KVMDUPIP-Group

The INTERMUX™ DVI USB KVM on IP™ device is used to control one or many computers locally at the server site or remotely via the Internet using a standard browser. Securely gain BIOS level access to systems for maintenance, support, or failure recovery over the Internet. Communication is secure and can be used in conjunction with a KVM switch for multipleserver access.

ROHS Compliant DVI USB/PS2 KVM over IP – Remote Server Management
CE Compliant DVI USB/PS2 KVM over IP – Remote Server Management

Scroll Down to Get Quote

Overview

Supports digital DVI resolutions to 2048x1152 (QWXGA), and analog VGA resolutions to 1920x1200 (WUXGA).
Compatible with USB or PS/2 computers.
Remote KVM access over IP network or over a modem link.
- Access systems during boot up, BIOS, and frozen OS conditions.
- Simultaneous access for multiple users.
- Manage servers around the world.
Provides local KVM access.
Simultaneous access from multiple users, no user limitation.
Cost effective Zero-U design. KVM control "at the rack" or remotely over IP.
Supports virtual media – deliver patches/upgrades as if on-site; remote and local file transfer.
Built-in 2-port Ethernet hub.
Use the included Java-based software to manage an unlimited number of INTERMUX-KVMDUPIP devices.
Windows, Java, and Android viewers for cross-platform compatibility.
Supports secure access via 1024-bit PKI authentication, 256-bit SSL data encryption, LDAP, RADIUS, and Active Directory authentication.
Optimize the video compression according to bandwidth availability.
Connect to a wireless network using a WiFi dongle (not included).

Specifications

Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.

Connectors

Host Connection
- One female DVI-I connector
- One female USB Type B connector
- One female 6-pin minDIN connector
Local Access
- One female DVI-I connector
- Two female USB Type A connectors for keyboard and mouse.
Two female RJ45 Ethernet jacks.
- 10/100 Base-T Ethernet interface with internal switch.
One female USB Type A for WiFi dongle.
- Compatible with EDIMAX EW-7811Un (not included).
One 3.5mm jack for RS232 power control.
- Baud rate fixed at 9600.
- Contact an NTI product consultant for information on connecting a compatible PDU.

Video

Supports digital/analog DVI and analog VGA.
A VGA monitor/computer can be connected by using a DVI-A to VGA
Use DVI-HD-xx-MM DVI-D to HDMI interface cable to connect an HDMI display/computer (not included).
Video resolutions:
- DVI video: Supports resolutions up to 2048x1152 @60Hz.
- VGA video: Supports resolutions up to 1920x1200 @60Hz.

Protocols

HTTP/HTTPS, SNMP, TCP/IP, DHCP, SSL, LDAP, IPV4, RADIUS, DDNS, NTP, PKI
Supports secure access via 1024-bit PKI authentication, 256-bit SSL data encryption, LDAP, RADIUS, and Active Directory authentication.

Power

Input: 100 to 240 VAC at 50 or 60Hz via AC adapter.
Output: 5VDC, 3A
Power consumption: 6.25W

Dimensions

WxDxH (in): 4.72x5.63x1.04 (120x143x27 mm)

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -4 to 140°F (-20 to 60°C).
Operating and Storage Relative Humidity: 0 to 90% non-condensing RH.

Cables

Use DVI-DS-2M-MM DVI-D Male-to-Male Single Link Cable to connect to a DVI source or display (not included).
Use DVI-IS-xx-MM DVI-I Male-to-Male Single Link Cable to connect to a DVI source or display (not included).
Use DVI-HD-xM-MM DVI-D Male to HDMI-A Male Single Link Cable to connect to an HDMI source or display (not included).
Use VEXT-xx-MM VGA Male-to-Male Cable without Ferrites to connect to a VGA source or display up to 25 feet (not included).
Use VEXT-F-xx-MM VGA Male-to-Male Cable with Ferrites to connect to a VGA source or display (not included).
Use DP-DVID-xx-MM cables to connect to a DisplayPort source up to 15 feet away (not included).

Regulatory Approvals

CE, FCC, RoHS

Warranty

Two years

Package Includes

One INTERMUX-KVMDUPIP
One power supply
One 6ft (1.8 meter) dual link DVI male to male cable
One 4ft (1.2 meter) USB Type A male to Type B male cable
One 4ft (1.2 meter) PS/2 1x2 splitter cable with male 6-pin miniDIN connectors.
Two passive VGA female to DVI male adapters
User manual

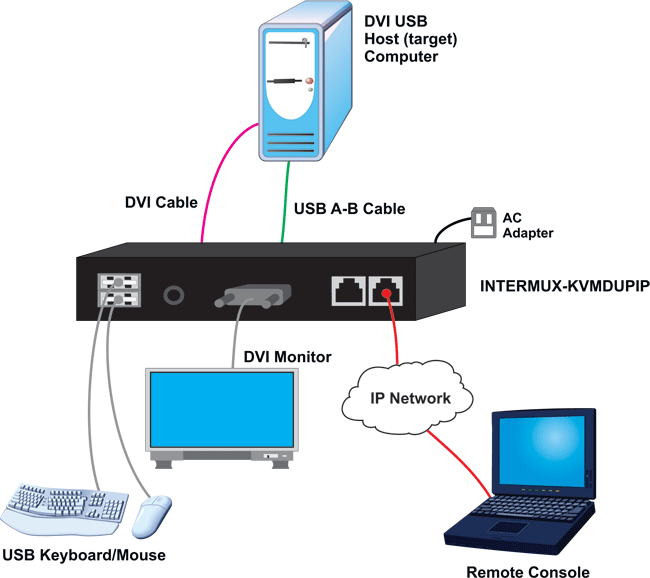

Application Drawings

DVI USB/PS2 KVM over IP – Remote Server Management

Downloads

Data Sheet:

DVI USB/PS2 KVM over IP – Remote Server Management 302 KB

(0)DVI USB/PS2 KVM over IP – Remote Server Management

NTI Part #	Description	Qty
INTERMUX-KVMDUPIP	DVI USB KVM over IP – Remote Server Management

Collapse all Expand all Related Items :

(0)DVI-D Male to Male Single Link Interface Cable

NTI Part #	Length	Qty
DVI-DS-2M-MM	2 meters

(0)DVI-I Cables, Male to Male

NTI Part #	Length	Qty
DVI-IS-6-MM	6 feet
DVI-IS-10-MM	10 feet
DVI-IS-15-MM	15 feet

(0)DVI-D Male to HDMI-A Male Single Link Cable

NTI Part #	Length	Qty
DVI-HD-1M-MM	1 meter
DVI-HD-2M-MM	2 meters
DVI-HD-3M-MM	3 meters
DVI-HD-5M-MM	5 meters

(0)VGA Video Cables, Male to Male

NTI Part #	Length	Color	Description
VEXT-1-5-MM	1.5 feet	Black	No Ferrite
VEXT-3-MM	3 feet	Black	2 Molded in Ferrite Cores
VEXT-6-MM	6 feet	Black	2 Molded in Ferrite Cores
VEXT-10-MM	10 feet	Black	2 Molded in Ferrite Cores
VEXT-15-MM	15 feet	Black	2 Molded in Ferrite Cores
VEXT-25-MM	25 feet	Black	2 Molded in Ferrite Cores

(0)VGA Monitor Cable with Ferrites, Male to Male

NTI Part #	Length	Color	Description
VEXT-F-1-5-MM	1.5 feet	Black	VGA Monitor Cable with Ferrites, Male to Male
VEXT-F-6-MM	6 feet	Black	VGA Monitor Cable with Ferrites, Male to Male
VEXT-F-10-MM	10 feet	Black	VGA Monitor Cable with Ferrites, Male to Male
VEXT-F-15-MM	15 feet	Black	VGA Monitor Cable with Ferrites, Male to Male
VEXT-F-25-MM	25 feet	Black	VGA Monitor Cable with Ferrites, Male to Male
VEXT-F-35-MM	35 feet	Black	VGA Monitor Cable with Ferrites, Male to Male
VEXT-F-50-MM	50 feet	Black	VGA Monitor Cable with Ferrites, Male to Male
VEXT-F-75-MM	75 feet	Black	VGA Monitor Cable with Ferrites, Male to Male
VEXT-F-100-MM	100 feet	Black	VGA Monitor Cable with Ferrites, Male to Male

(0)Digital Video Cables

NTI Part #	Length	Qty
DP-DVID-3-MM	3 feet

(0)DisplayPort to DVI-D Interface Cable, Male to Male

NTI Part #	Length	Qty
DP-DVID-6-MM	6 feet
