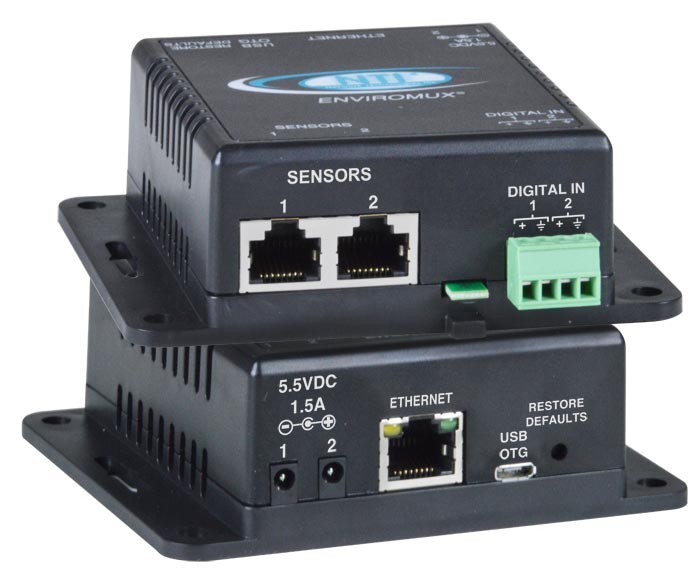

ENVIROMUX-MICRO-T
ENVIROMUX-MICRO-T

Micro Environment Monitoring System / Remote Temperature/Humidity Sensor over IP

NTI Part #: ENVIROMUX-MICRO-Group
The ENVIROMUX-MICRO-T features an integrated temperature sensor, 2 RJ45 temperature/humidity sensor ports & 2 dry contact inputs. The ENVIROMUX-MICRO-TRHP features an integrated temperature/humidity sensor, 2 RJ45 temperature/humidity sensor ports, 2 dry contact inputs & built-in Power over Ethernet (PoE). Use independently or as an IP-connected remote sensor for the ENVIROMUX-2D/5D/16D.
Also known as: Remote Environment Monitoring System, monitor networking closets, server room alert, IP temperature sensor, humidity sensor, computer room humidity probe.
Product Highlight
  • Integrated temp-only or temp/humidity sensor, 2 temp/humidity ports, 2 digital inputs
  • USB port for 3G modem
  • Power over Ethernet option
  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant Micro Environment Monitoring System / Remote Temperature/Humidity Sensor over IP
  • CE Compliant Micro Environment Monitoring System / Remote Temperature/Humidity Sensor over IP
Scroll Down to Get Quote

The ENVIROMUX® Micro Environment Monitoring System (EMS) monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, web page, network management (SNMP), and/or SMS messages (via external USB 3G modem).


The system functions independently or as an IP-connected remote sensor for the ENVIROMUX-2D/5D/16D. The ENVIROMUX-MICRO-T features an integrated temperature sensor, two RJ45 sensor ports for external temperature/humidity sensors, and two dry contact inputs. The ENVIROMUX-MICRO-TRHP features an integrated temperature/humidity sensor, two RJ45 sensor ports for external temperature/humidity sensors, two dry contact inputs and built-in Power over Ethernet (PoE).

  • ENVIROMUX-MICRO-T
    • 1 integrated temperature sensor
    • 2 RJ45 ports for external temperature/humidity sensors
    • 2 digital inputs sensitive to contact closure
    • Dual DC power provides dual redundancy.
  • ENVIROMUX-MICRO-TRHP
    • 1 integrated temperature/humidity combination sensor
    • 2 RJ45 ports for external temperature/humidity sensors
    • 2 digital inputs sensitive to contact closure
    • Built-in Power over Ethernet and dual DC power provides triple redundancy.
  • Sensors are hot pluggable.
  • Monitor (ping) up to 4 IP network devices – alerts are sent if devices are not responding.
  • Create multiple alerts for any installed sensor.
  • Sensor conditions can be configured to trigger alerts by themselves, and/or be used in combination with other alerts to trigger one Smart Alert.
    • Configure up to 32 alerts, and one Smart Alert.
  • Alerts are posted in message log, which is accessible through Web user interface.
  • Supports 4 IP network video cameras for live view of any facility.
  • Integrates with various Open Source SNMP monitoring packages -Nagios and MRTG.
    • The unit can be polled via SNMP.
  • USB port for connecting USB modem.
  • Optional intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX units and all connected sensors.
  • Security: HTTPS, TLS v1.2, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights.
  • Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored.
RJ45 Sensor Ports
  • Two RJ45 modular jacks for connecting temperature sensors or combined temperature/humidity sensors.
    • Three levels of user-defined alerts – normal, warning, critical.
Dry Contact Closures
  • Two screw terminal pairs for connecting dry contact devices and the liquid detection sensor.
USB Port
  • One female Micro USB connector for connecting a USB Modem.
Ethernet Port
  • One female RJ45 connector.
  • 10/100 Base-T Ethernet interface.
Protocols
  • HTTP/HTTPS, SNMP V1/V2c, SMTP, TCP/IP, Syslog, SNTP, DHCP, TLS v1.2, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour.
  • Compatible with any SNMP management software.
    • The unit can be polled via SNMP.
  • Operates and configures via HTTP/HTTPS web page.
  • An IP address can be assigned to the ENVIROMUX-MICRO automatically by a DHCP server.
  • Generates SNMP traps, email alerts, syslog messages, and SMS messages (via USB 3G modem).
    • Alerts are posted in event log, which is accessible through Web user interface.
    • Email alerts can be sent to 9 addresses.
      • Users can configure the schedule for when they will be alerted.
      • Email alerts are not compatible with TLS.
    • SMS alerts can be sent to 9 numbers.
Integrated Temperature Sensor
Integrated Humidity Sensor
(ENVIROMUX-MICRO-TRHP only)
  • Applications from 0 to 90% relative humidity at temperatures between -4 to 167°F (-20 to 75°C).
  • Accuracy:
    • 0 to 80% relative humidity, ±3%
    • 80 to 90% relative humidity, ±4%
Dimensions
  • WxDxH in (all options): 4x3.44x1.37 (102x87x35 mm).
  • Includes mounting holes to match rack hole spacing.
Power
  • ENVIROMUX-MICRO-T:
    • Dual DC power provides dual redundancy.
      • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source.
      • The unit draws power from the source with the highest DC voltage (nominal 5.5V).
        • If both sources have exactly the same voltage, it will draw in part from each of them.
    • 110 to 240 VAC at 50 or 60 Hz via AC adapter.
      • Includes one country-specific AC adapter. The second AC adapter is sold separately (PWR-SPLY-ELC).
    • Input voltage: 5.5VDC ±5%
    • Power consumption: 4W max.
  • ENVIROMUX-MICRO-TRHP:
    • Built-in Power over Ethernet and dual DC power provides triple redundancy.
      • Power over Ethernet standards supported: IEEE 802.3af, 802.3at.
        • Proprietary schemes such as Cisco Discovery Protocol are not supported.
          • Similar legacy switches and routers will have to use PWR-SPLY-ELC.
    • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source.
    • The unit draws power from the source with the highest DC voltage (nominal 5.5V).
      • If two or more sources have exactly the same voltage, it will draw in part from each of them.
    • 110 to 240 VAC at 50 or 60 Hz via AC adapter (not included).
      • Country-specific AC adapters sold separately (PWR-SPLY-ELC).
    • Input voltage: 5.5VDC ±5%
    • Power consumption: 4W max.
MTBF
  • ENVIROMUX-MICRO-T: 648,857 hours.
  • ENVIROMUX-MICRO-TRHP: 628,394 hours.
Environmental
  • Operating & Storage Temperature: -4 to 167°F (-20 to 75°C).
  • Operating & Storage Relative Humidity: 0 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS.
Warranty
  • Two years

Control Methods

Web Interface (view product demo)
  • Configuration can be done over the Internet/LAN via Web page.
    • When connected as an IP remote sensor for an ENVIROMUX-2D/5D/16D unit, the ENVIROMUX-MICRO is configured via the ENVIROMUX-xD web interface.
  • Supports Internet Explorer 6.0 and higher, Firefox 1.5 and higher, Netscape 9, Google Chrome, Safari 1.3 and higher for MAC, and Safari 3.0 and higher for PC.
  • Configure sensor thresholds, alarm methods, formats of alerts, and system data log.
  • View/edit sensors' current values, thresholds and alert statuses.
    • All sensors connected to the ENVIROMUX-MICRO can be viewed on one summary page.
    • User configurable settings allow sensors to return to normal status when alert condition clears, without manually acknowledging/dismissing the alert.
  • View/edit entries stored in the system logs.
  • Event log records system alerts.
    • Stores up to 200 entries.
  • Data log records samples of sensor readings per minute.
    • Stores up to 43,000 entries per sensor.
  • The data log can be downloaded as a comma-separated plain text file.
  • Configure IP information (address, subnet mask, default gateway, DNS, etc.), user administrative settings, and data logging settings.
  • Up to 9 users can access the web page at one time.
  • Permissions, schedule and alert methods are configurable for each user.
  • Configure up to 32 sensor conditions (alerts).
  • Configure 1 Smart Alert to use different alert combinations to send alert messages.
Telnet
  • Monitor over the text-based menu system accessible via Telnet.
  • Access is controlled via username/password.
  • System stores encrypted login information.
  • Two user levels: user and administrator.
Network Operation
  • SNMP support, allowing integration into network management platforms.
  • Updating the system firmware.
Open Source Monitoring Integration
Optional Management Software
  • Optional intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX units and all connected sensors.
  • Push configuration changes to multiple connected units in a group at once.
    • E.g. new users, mail server, network settings, security settings, system settings, etc.
  • Choose between Enterprise Management Software or Low-Cost Management Software.
Optional Android App for Tablet/Phone
  • Optional Android App provides an easy-to-use interface for monitoring sensor statuses and acknowledging/dismissing sensor alerts from many ENVIROMUX-MICRO units.

Application Drawings

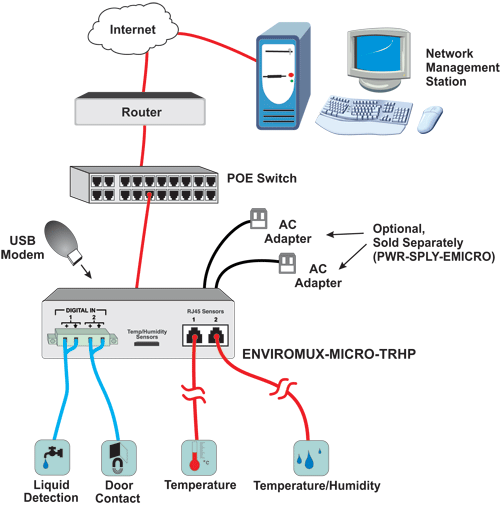

  • How to Monitor and manage server room environmental and security conditions over IP.
    How to Monitor and manage server room environmental and security conditions over IP.

Application Notes

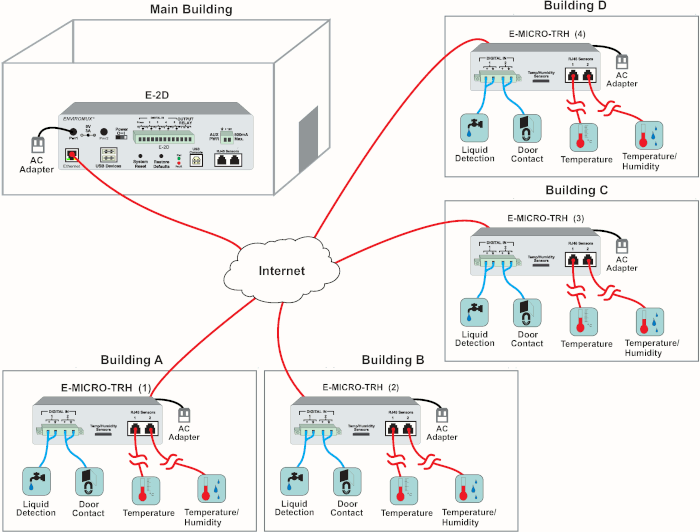

  • How to Connect Remote Temperature/Humidity Sensors over IP to the ENVIROMUX-2D/5D/16D
    Loading image...
    The ENVIROMUX-MICRO-T(RHP) Remote Temperature/Humidity Sensors over IP can function as an IP-connected remote sensor for the ENVIROMUX-5D. To add a remote IP sensor, access the web interface and select Monitoring > IP Sensors. Click on the "Add New IP Sensor" link on the bottom and key in the description and IP address of the ENVIROMUX-MICRO-T(RHP) to connect it to the ENVIROMUX-5D. Up to eight remote IP sensors can be connected. All sensors connected, including the Remote Temperature/Humidity Sensors over IP, to the ENVIROMUX-5D can be viewed on one summary page.

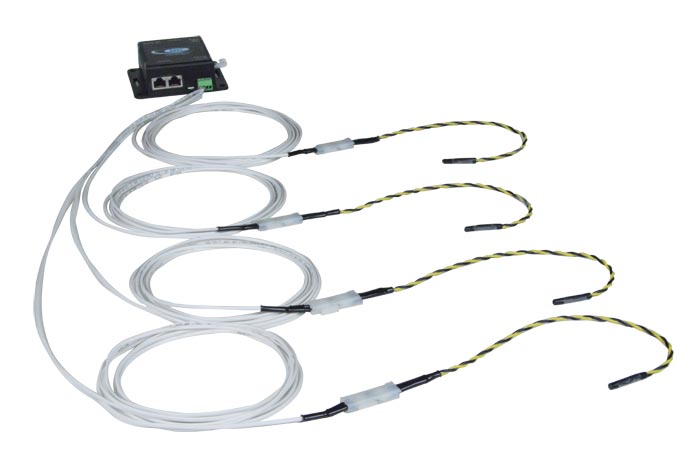

  • Connect up to 4 Liquid Detection Sensors to a Single Terminal Pair on the ENVIROMUX-MICRO
    Loading image...
    Each screw terminal pair on the ENVIROMUX-MICRO-T(RHP) Environment Monitoring System (EMS) will support up to four rope-style liquid detection sensors.

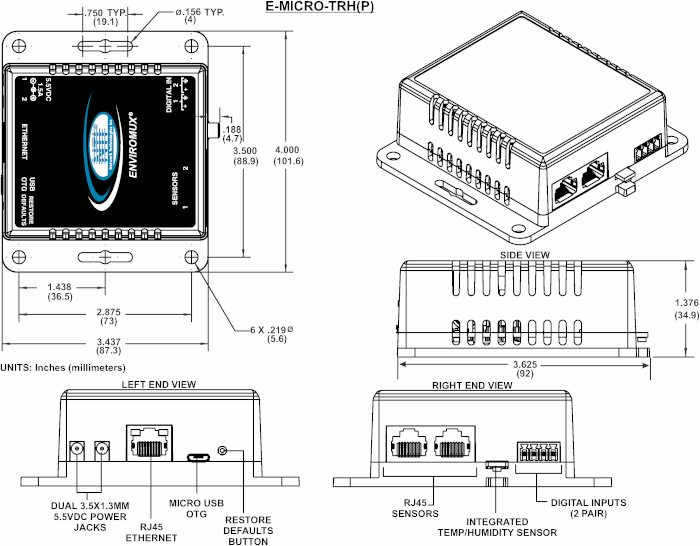

CAD Drawings

  • ENVIROMUX-MICRO-T(RHP)
    Loading image...
