The RACKMUX® USB KVM Drawer with Built-in High Density USB KVM Switch combines a rackmount LCD monitor, keyboard, touchpad mouse and a 4-, 8- or 16-port high density USB KVM switch in a space-saving 1RU industrial strength drawer.
Also known as: Integrated USB KVM drawer USB switch, KVM switch built-in 1RU KVM drawer, rack mount USB KVM drawer switch, monitor switch KVM drawer, USB console drawer, keyboard monitor touchpad mouse drawer, keyboard LCD shelf, folding VGA monitor.
Product Highlight
  • Single-Person Installation
  • Two optional transparent USB connectors for USB touch screen monitors, CAC card readers, interactive whiteboards, etc.
  • Designed and Manufactured in the U.S.A.
Scroll Down to Get Quote

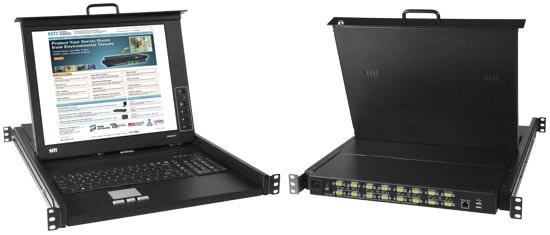

The RACKMUX® USB KVM Drawer with Built-in High Density USB KVM Switch combines a rackmount LCD monitor, keyboard, touchpad mouse and a 4-, 8- or 16-port high density USB KVM switch in a space-saving 1RU industrial strength drawer.

  • Forward-folding 17" TFT/LCD VGA monitor.
    • 1280x1024 video resolution for 17" monitor.
    • Optional high resolution 1920x1200 WUXGA 17.1" monitor available.
    • Tilt LCD up and back to adjust to any comfortable viewing angle to 120° for 17" models.
  • Control up to 16 USB computers (PC, SUN, and MAC) with VGA video.
  • Available with two optional transparent USB ports to connect any two external USB 1.1 (low/full speed) devices, such as a touch screen monitor, interactive white board, or CAC card reader.
  • Torque-friction hinges – monitor does not wobble, spring, or slam shut.
  • Designed to be a one-person job when installing the drawer.
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding out of the rack.
    • Front quick-release latches for pushing the drawer back into the rack.
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
  • Cabling runs are simplified with NTI's high density KVM switch cables.
  • Available with Sunlight Readable monitor (17" models only) – call an NTI Product Consultant for more information.
  • Available with optional 24VDC power.
Monitor
  • Forward-folding 17" Active Matrix TFT LCD flat panel VGA monitor.
  • Resolution:
    • RACKMUX-V17-N-xUSBHD(UT/-24V): 1280x1024
    • RACKMUX-V17HR-N-8USBHD-24V: 1920x1200
  • Tilt: up to 120°.
  • Frequency:
    • RACKMUX-V17-N-xUSBHD(UT/-24V):
      • Horizontal: 31 to 80 KHz
      • Vertical: 55 to 76 Hz.
    • RACKMUX-V17HR-N-8USBHD-24V:
      • Horizontal: 30 to 80 KHz
      • Vertical: 56 to 75 KHz
  • Brightness:
    • RACKMUX-V17-N-xUSBHD(UT/-24V): 300 nits
    • RACKMUX-V17HR-N-8USBHD-24V: 275 nits
  • Contrast Ratio:
    • RACKMUX-V17-N-xUSBHD(UT/-24V): 500:1
    • RACKMUX-V17HR-N-8USBHD-24V: 800:1
  • Supports DDC1 and DDC2B protocols.
  • OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
Power
  • 90 to 264 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
  • Power Consumption:
    • RACKMUX-V17-N-8USBHD: 40W
  • RACKMUX-V17-N-8USBHD-24V
    • 3-pin terminal block for 24V power source.
    • Accepts 18~36VDC (24VDC nominal).
    • For installation in a 24V Telecom environment.
MTBF
  • RACKMUX-V17-N-4USBHD: 35,904 hrs.
  • RACKMUX-V17-N-4USBHDUT: 34,160 hrs.
  • RACKMUX-V17-N-8USBHD: 35,089 hrs.
  • RACKMUX-V17-N-16USBHD: 32,495 hrs.
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and storage relative humidity: 20 to 90% non-condensing RH.
Dimensions
  • 17" (432 mm) Models WxDxH: 19x23.91x1.75 in. (483x607x44 mm)
    • Drawer is adjustable to various rack depths from 24" (610 mm) to 40" (1,016 mm) deep.
  • Handle adds an additional 1.5" (38 mm) to the depth when monitor is in closed position.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
Package Includes
  • KVM Drawer
  • IEC Power Cord, country-specific (excluded in 24V models)
  • DB9 female to RJ45 female adapter
  • DB25 female to RJ45 female adapter
  • 5-ft CAT5 patch cable
  • CD with manual and drawer installation manual
  • Single-person installation mounting kit

17" (432 mm) Rackmount USB + PS2 KVM Drawer Specifications
UNIMUX High Density USB KVM Switch Specifications

Application Drawings

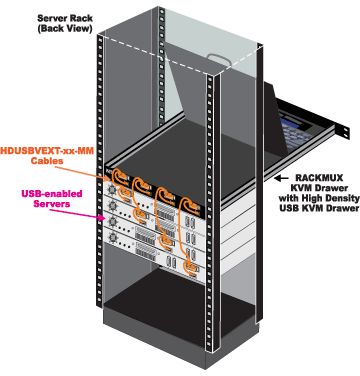

  • Rackmount KVM Drawer with High Density USB VGA KVM Switch - CAC Card Reader Compatible
    Rackmount KVM Drawer with High Density USB VGA KVM Switch - CAC Card Reader Compatible

CAD Drawings

  • Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers
    Loading image...

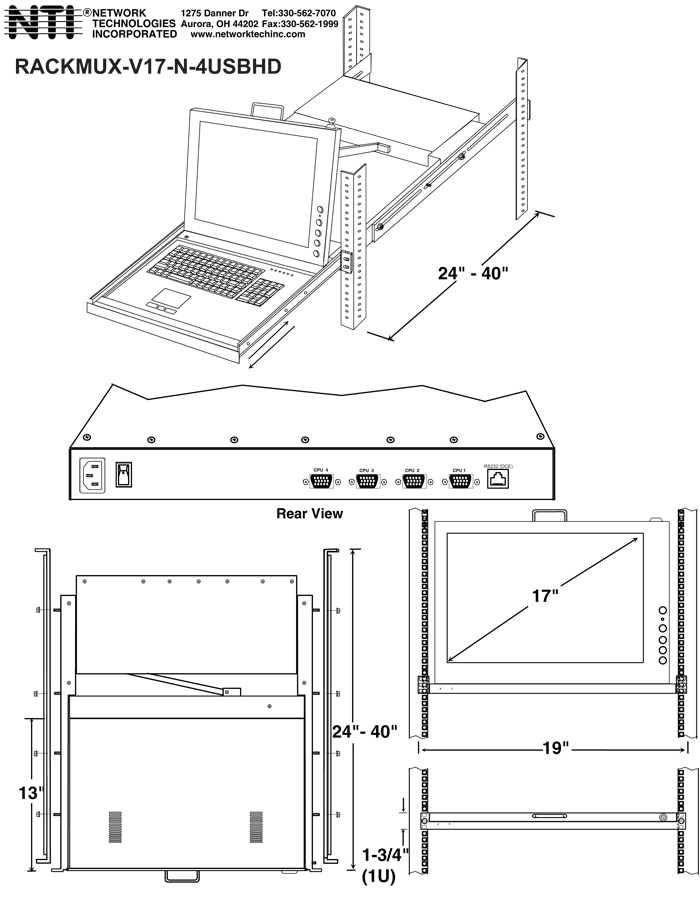

  • RACKMUX-V17-N-4USBHD
    Loading image...
    Rackmount 17 in. KVM Drawer with High Density USB VGA KVM Switch 4-port

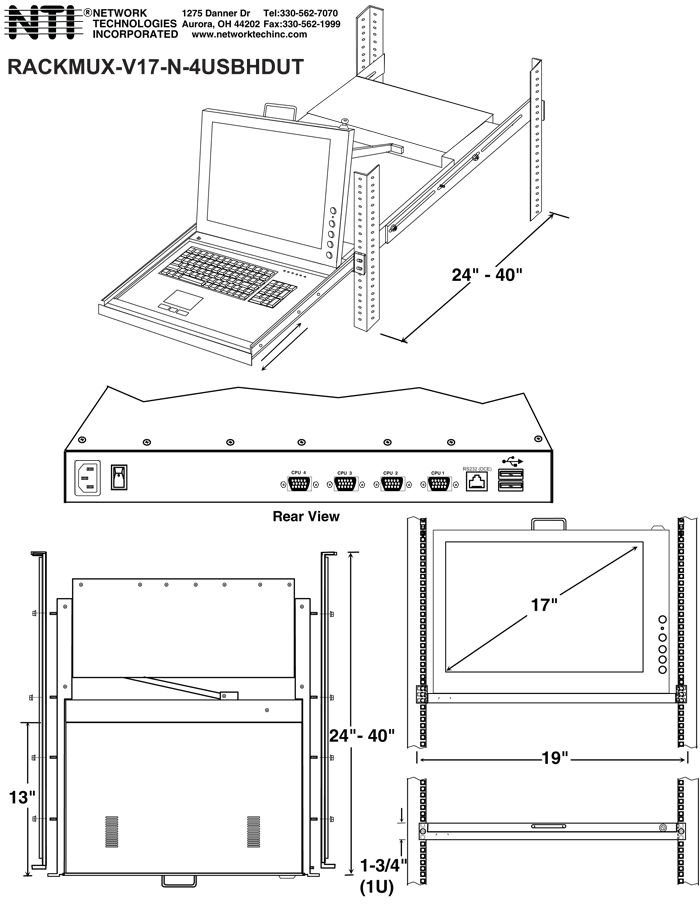

  • RACKMUX-V17-N-4USBHDUT
    Loading image...
    Rackmount 17 in. KVM Drawer with High Density USB VGA KVM Switch 4-port, with optional Transparent USB ports

(0)KVM Drawers with High Density USB KVM Switch

NTI Part # Video Resolution Number of Ports Options Power Cord Qty
RACKMUX-V17-N-4USBHD 1280x1024 4 N/A Yes
RACKMUX-V17-N-8USBHD 1280x1024 8 N/A Yes
RACKMUX-V17-N-16USBHD 1280x1024 16 N/A Yes
RACKMUX-V17-N-4USBHDUT 1280x1024 4 Transparent USB Ports Yes
RACKMUX-V17-N-8USBHDUT 1280x1024 8 Transparent USB Ports Yes
RACKMUX-V17-N-16USBHDUT 1280x1024 16 Transparent USB Ports Yes
RACKMUX-V17-N-8USBHD-24V 1280x1024 8 24V Power No
RACKMUX-V17HR-N-8USBHD-24V 1920x1200 8 High Resolution, 24V Power No
