Rackmount VGA USB + PS/2 KVM Drawer, up to 1920x1200 Resolution

Rackmount VGA USB + PS/2 KVM Drawer, up to 1920x1200 Resolution

NTI Part #: RACKMUX-V15-Group

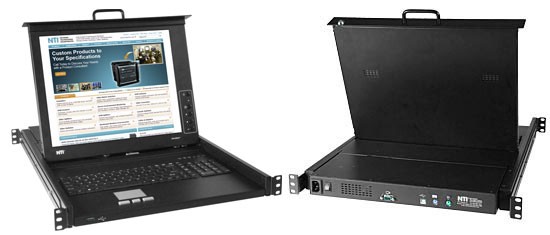

RACKMUX-V17-N (Front & Back)

Additional Images

NTI Part #: RACKMUX-V15-Group

The RACKMUX® USB + PS/2 KVM Drawer combines a rackmount LCD monitor, keyboard, touchpad mouse in a space-saving 1RU industrial strength drawer. It is available with a 1920x1200 17.1" LCD, 1280x1024 17" LCD or 1024x768 15" LCD.

Also known as: usb kvm drawer, rack mount PS/2 keyboard drawer, rack mount kvm drawer, USB console drawer, keyboard monitor touchpad mouse drawer, KVM drawers, keyboard LCD drawer, folding VGA monitor.

Product Highlight

Single-Person Installation
Optional Hi-Res 1920x1200 17.1" LCD

Designed and Manufactured in the U.S.A.

Scroll Down to Get Quote

The RACKMUX® VGA USB + PS/2 KVM Drawer combines a rackmount LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial strength drawer.

Available with 15" or 17" Active Matrix LCD flat panel VGA monitor.
- Optional hi-res 1920x1200 17.1" monitor available
- Tilt LCD up and back to adjust to any comfortable viewing angle to 120°
Compatible with USB and PS/2 computers.
Torque-friction hinges-monitor does not wobble, spring, or slam shut.
Compact, heavy-duty tactile keyboard.
- Available with 17-key numeric keypad or large padded wrist-rest.

Rugged steel construction with durable powder coat finish.
Equipped with On Screen Display (OSD).
Designed to be a one-person job when installing the drawer.
Drawer locks into place when open to prevent it from sliding in and out of the rack.
- Front quick-release latches for pushing the drawer back into the rack.
LCD auto-shutoff in closed position
Internal cable arm provides proper cable management for sliding the drawer open and closed.
Front panel security lock.
Front panel USB port to connect an external USB device, such as a flash drive.
Available with optional mounting bracket for two-post style telco rack.

Host Interface

Compatible with PS/2, UNIX and USB computers.
Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
One female 15-pin HD, one female USB Type B, and two female 6-pin minDIN connectors.
Use with NTI Multi-Platform KVM Switches to control multiple PC, SUN and MAC computers.

Monitor

Forward-folding 15" or 17" Active Matrix TFT LCD flat panel VGA monitor.
Resolution:
- RACKMUX-V15(-N): 1024x768
- RACKMUX-V17(-N): 1280x1024
- RACKMUX-V17HR-N: 1920x1200
Tilt: up to 120°.
Frequency:
- RACKMUX-V15(-N), RACKMUX-V17(-N):
  - Horzontal: 31 to 80 KHz
  - Vertical: 55 to 76 Hz.
- RACKMUX-V17HR-N:
  - Horizontal: 30 to 80 KHz
  - Vertical: 56 to 75 KHz
Brightness:
- RACKMUX-V15(-N): 250 nits
- RACKMUX-V17(-N): 300 nits
- RACKMUX-V17HR-N: 275 nits
Contrast Ratio:
- RACKMUX-V15(-N), RACKMUX-V17(-N): 500:1
- RACKMUX-V17HR-N: 800:1
Supports DDC1 and DDC2B protocols.
OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.

Cables

6-foot (1.8-meter) 15-pin HD VGA male to male cable included.
6-foot (1.8-meter) USB Type A male to USB Type B male cable included.
6-foot (1.8-meter) dual 6-pin miniDIN male to male keyboard/mouse cable included.
6-foot (1.8-meter) power supply cable included.

Devices

Keyboard available in: English (US).
- RACKMUX-V15/V17: 83-key (US) keyboard with wrist-pad.
- RACKMUX-V15-N, RACKMUX-V17(HR)-N: 100-key (US) keyboard with numeric keypad.
Three button touchpad mouse.
Front panel USB 1.1 port to connect external USB devices.
- Female USB Type A connector.
- KVM drawer must be connected to a USB-enabled computer.

MTBF

RACKMUX-V15: 41,704 hrs
RACKMUX-V15-N: 41,596 hrs
RACKMUX-V17: 40,923 hrs
RACKMUX-V17-N: 40,530 hrs

Power

110 or 220 VAC at 50 or 60 Hz via IEC connector.
Available power cord lengths: 1/1.5/3/6 feet
Power Consumption: 30 W
Maximum Inrush Current: 30A

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -4 to 140°F (-20 to 60°C).
Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.

Dimensions

WxDxH: 19x23.9x1.75 Inches. (483x607x44 millimeters)
- Handle adds an additional 1.5" (38 mm) to the depth when monitor is in closed position.
Weight: 26 lbs. (12 kg)
Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.

Regulatory Approvals

CE, RoHS

Warranty

Two years

Application Drawings

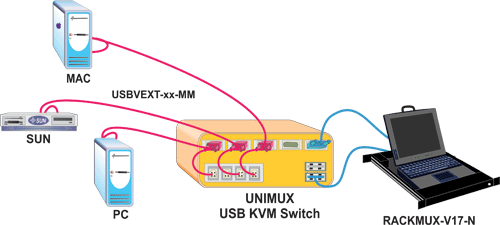

Rackmount VGA USB + PS/2 KVM Drawer

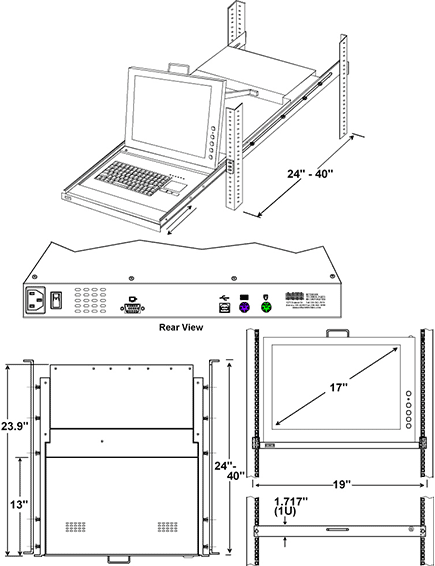

CAD Drawings

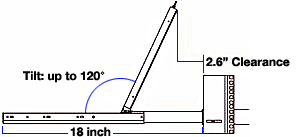

Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers

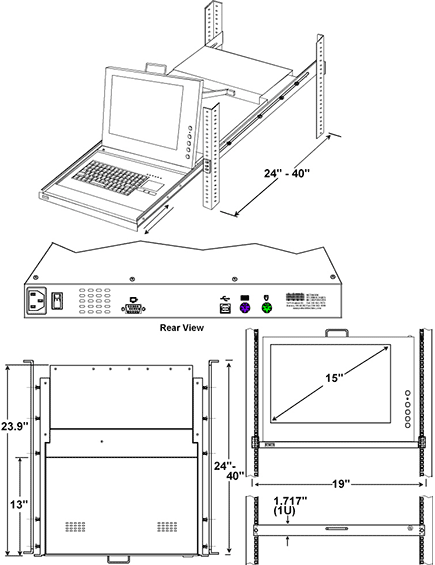

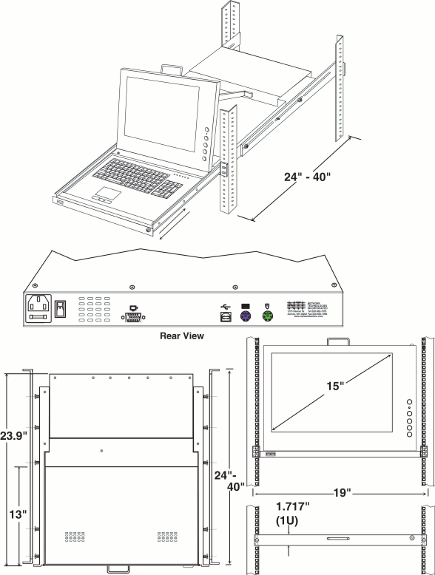

Rackmount USB + PS/2 KVM Drawer with 15" Monitor (RACKMUX-V15)

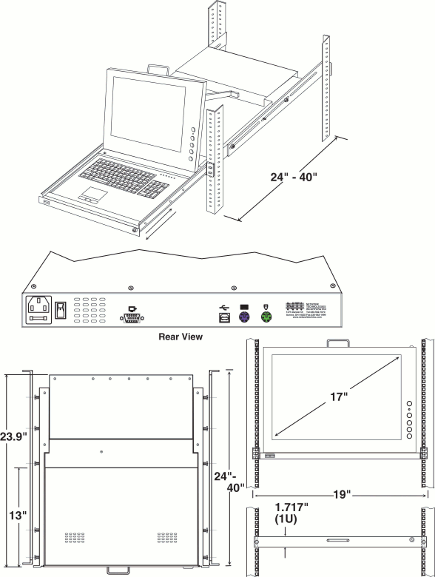

Rackmount USB + PS/2 KVM Drawer with 17" Monitor (RACKMUX-V17)

Keyboard Layouts

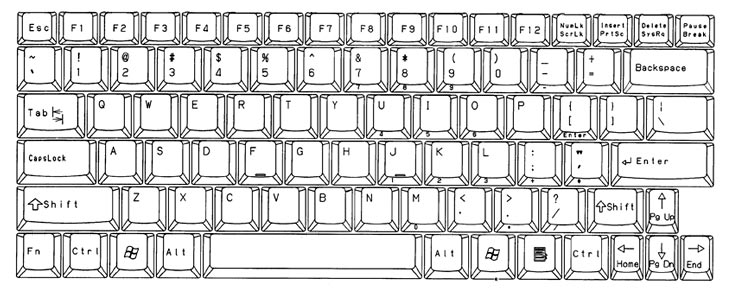

Rackmount KVM Drawer

RACKMUX-T15, RACKMUX-T15-G, RACKMUX-V15, RACKMUX-V17, RACKMUX-T15-CSx, RACKMUX-T15-G-CSx, RACKMUX-V17-MP-xUSBHD, RACKMUX-V17-MP-PRIMUX, RACKMUX-V17-MP-xUNV, RACKMUX-V17-MP-2X8U, RACKMUX-V17-MP-nXmUHD, RACKMUX-D17

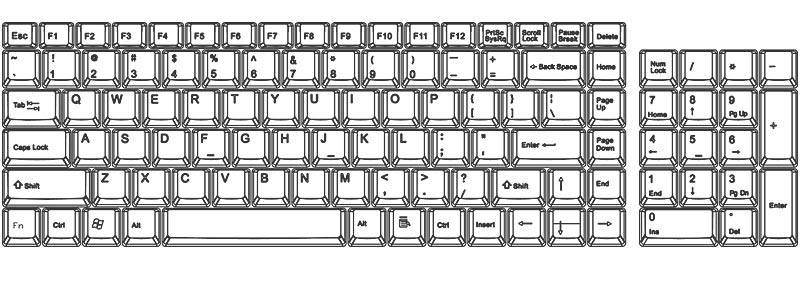

Rackmount KVM Drawer with Numeric Keypad

RACKMUX-T15-N, RACKMUX-T15-NG, RACKMUX-T15-N-CSx, RACKMUX-T15-NG-CSx, RACKMUX-T15-N-Sx, RACKMUX-V17-MP-xUSBHD, RACKMUX-V15-N-xUNV, RACKMUX-V17-N-xUNV, RACKMUX-V15-N-PRIMUX, RACKMUX-V15-N-PRIMUX, RACKMUX-V15-N-nXmUHD, RACKMUX-V17-N-nXmUHD, RACKMUX-V15-N, RACKMUX-V17-N, RACKMUX-D17-N, RACKMUX-D15/17-N-xDVIHD

Video:

RACKMUX NTI KVM Drawers: Single-Person Installation
Excluding 20" models

User Manual:

Data Sheet:

RACKMOUNT USB + PS/2 KVM Drawer 208 KB

Knowledge Base:

RACKMUX - KVM Drawers

"I love the RACKMUX-V17-N rackmount KVM drawer that I ordered. It works great!"

Marcus Gutierrez

Univision Radio Dallas

Dallas, TX

(0)VGA USB + PS/2 KVM Drawers with VGA Monitor

NTI Part #	Description	Screen Size	Video Resolution
RACKMUX-V15	VGA USB + PS/2 KVM Drawer	15"	1024x768
RACKMUX-V15-N	VGA USB + PS/2 KVM Drawer, numeric keypad	15"	1024x768
RACKMUX-V17	VGA USB + PS/2 KVM Drawer	17"	1280x1024
RACKMUX-V17-N	VGA USB + PS/2 KVM Drawer, numeric keypad	17"	1280x1024
RACKMUX-V17HR-N	VGA USB + PS/2 KVM Drawer, numeric keypad	17.1"	1920x1200
