DVI/HDMI USB KVM Splitter, USB Hub Multiple Keyboard Mouse Monitor One USB Computer, Reverse KVM Switch, Optional Audio

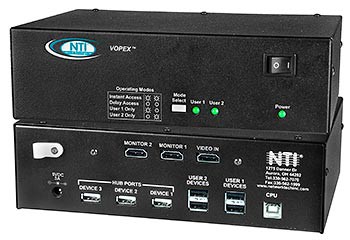

VOPEX-USBH-2 (Front & Back)
VOPEX-USBH-2 (Front & Back)

DVI/HDMI USB KVM Splitter

NTI Part #: VOPEX-USBH-2-Group
The VOPEX® DVI/HDMI USB KVM splitter with built-in USB hub and optional audio allows up to four users (four USB keyboards, USB mice and DVI/HDMI monitors) to access one USB computer and up to three USB devices (printers, scanners, security cameras, etc.).
Also known as: HDMI DVI USB splitter and hub, built-in hub, USB hub, peripheral device hub and splitter, keyboard monitor mouse splitter, USB keyboard splitter, reverse KVM switch.
  • Designed and Manufactured in the U.S.A.
Scroll Down to Get Quote
The VOPEX ® DVI/HDMI USB KVM splitter with built-in USB hub allows up to four users (four USB keyboards, USB mice and DVI/HDMI monitors) to access one USB computer and up to three USB devices (printers, scanners, security cameras, etc.).
  • Compatible with USB computers (PC, SUN, MAC)
  • Built-in hub for multiple USB devices.
  • Available with optional stero audio.
  • Access one computer from multiple locations.
  • Multiple users can enter data into the same program.
  • Supports HDTV resolutions to 1080i and computer resolutions to 1920x1200.
  • Compliant with USB 2.0 (low/full speed) standards.
  • Compliant with HDMI 1.2, HDCP 1.1 and DVI 1.0 standards.
  • Supports Plug-n-Play specifications.
  • High quality, rugged steel construction with durable, powder-coat finish.
Hosts
  • Female HDMI-A connector.
  • Female USB Type B connector.
  • Supports a USB computer (PC, SUN, MAC) with DVI/HDMI video.
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Monitor
  • Female HDMI-A connectors.
  • Supports HDTV resolutions to 1080i and computer resolutions to 1920x1200.
  • Compliant with HDMI 1.2, HDCP 1.1 and DVI 1.0 standards.
Devices
  • Female USB Type A connectors for connection of keyboard and mouse.
    • Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse ®, Logitech Cordless Elite Duo keyboard and mouse, Gyration keyboard/mouse and Crystal Vision keyboard with touchpad.
    • Keyboard and mouse are hot-pluggable.
    • Supports international keyboard layouts in auto-detection mode.
  • Three female USB Type A connectors for connection of USB peripheral devices (printers, scanners, security cameras, etc.)
  • Provides support for full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.
Optional Audio
  • 3.5 mm stereo audio jacks.
  • Frequency response: 20 Hz to 20 kHz +/- 1dB.
  • Total harmonic distortion (THD): 0.012%.
  • Stereo crosstalk: -82 dB.
  • Input impedance: 10k Ohms.
  • CD quality audio output.
  • Requires powered speakers.
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)
Cables
  • Use the included three-foot DVI-D male to HDMI-A male single link cable to connect a DVI-D source or display.
  • Use HDMI-xx-MM cable to connect an HDMI source or display (not included).
  • One-meter male USB Type A to male USB Type B cable included.
Dimensions
  • WxDxH: 8.5x6.0x2.6 in (216x152x66 mm)
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years.
Control Methods
  • Press Mode button to cycle through all four modes. LEDs indicate which mode is selected.
  • User 1 Mode - Only User 1 can type or move the mouse.
  • User 2 Mode - Only User 2 can type or move the mouse.
  • User 3 Mode - Only User 3 can type or move the mouse.
  • User 4 Mode - Only User 4 can type or move the mouse.
  • Inst Mode - Keyboard or mouse activates immediately.
  • Delay Mode - Locked out user must wait five seconds after last keystroke or mouse movement occurs on active user.

Application Drawings

  • How to allow two users to access one USB enabled computer and up to three USB devices

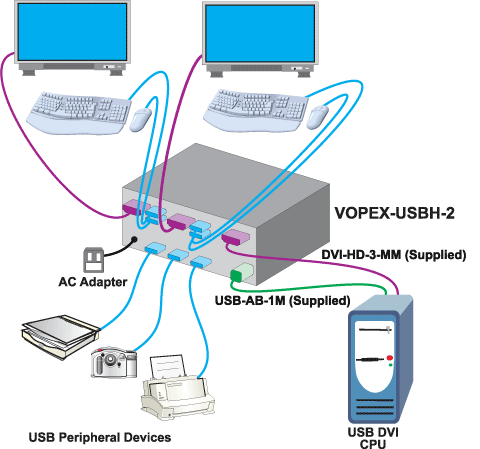

    How to allow two users to access one USB enabled computer and up to three USB devices
User Manual:
Data Sheet:

  • "The VOPEX-USBH-2 KVM Splitters are working great. We have not had any problems at all. We are purchasing an additional one as a spare."

    Tom Burger
    Fairfax County Circuit Court
    Fairfax, VA

(0)HDMI DVI USB KVM Splitters

NTI Part # Number of Ports Supported Features Qty
VOPEX-USBH-2 2 KVM, HDMI, DVI
VOPEX-USBHA-2 2 KVM, Stereo Audio, HDMI, DVI
VOPEX-USBH-4 4 KVM, HDMI, DVI
VOPEX-USBHA-4 4 KVM, Stereo Audio, HDMI, DVI

Collapse all Expand all Related Items :

(0)HDMI Male-Male Cable

NTI Part # Length Qty
HD-3-MM 3 feet
HD-6-MM 6 feet
HD-9-MM 9 feet
HD-14-MM 14 feet
HD-20-MM 20 feet
HD-30-MM 30 feet
HD-50-MM 50 feet
HD-100-MM 100 feet

(0)DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Qty
DVI-HD-3-MM 3 feet
DVI-HD-6-MM 6 feet
DVI-HD-10-MM 10 feet
DVI-HD-15-MM 15 feet
