Rackmount SUN USB KVM Drawer 17" LCD rack mount SUN USB keyboard monitor mouse shelf

Rackmount SUN USB KVM Console Drawer 1RU

NTI Part #: RACKMUX-VS17-T-Group

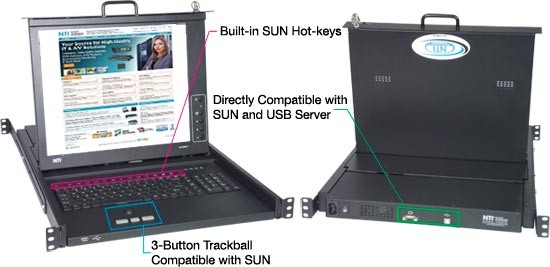

RACKMUX-VS17-NT (Front & Back)
RACKMUX-VS17-NT (Front & Back)
NTI Part #: RACKMUX-VS17-T-Group
The RACKMUX® SUN USB KVM Drawer combines a rackmount LCD monitor, SUN USB keyboard and 3-button trackball mouse in a space-saving 1RU industrial strength drawer. It is available with a forward-folding 17" (432 mm) Active Matrix LCD flat panel VGA monitor.
Also known as: SUN USB KVM Drawer, SUN console drawer, rackmount SUN USB KVM shelf, 1RU rack mount SUN USB keyboard monitor mouse drawer, 17" folding monitor
Single-Person Installation
  • Designed and Manufactured in the U.S.A.
Scroll Down to Get Quote
The RACKMUX® SUN USB KVM Drawer combines a rackmount LCD monitor, SUN USB keyboard, and trackball mouse in a space-saving 1RU industrial strength drawer.
  • Forward-folding 17" (432 mm) Active Matrix LCD flat panel VGA monitor.
    • Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
    • Optional sunlight readable monitor available.
  • Supports SUN-compatible 1152x900 resolution.
  • Torque-friction hinges-monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard.
    • Available with 17-key numeric keypad or large wrist-rest.
  • Designed to be a one-person job when installing the drawer.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Available with optional mounting bracket for two-post style telco rack.
  • Rugged steel construction with durable powder coat finish.
  • LCD auto-shutoff in closed position.
  • Internal cable arm provides proper cable management for sliding the drawer open and closed.
  • Equipped with On Screen Display (OSD).
  • Front panel security lock.
  • Front panel USB port to connect an external USB device, such as a flash drive.
Host Interface
  • Compatible with USB-enabled SUN, Windows, Linux, Apple, IBM, and HP computers.
  • One female 15-pin HD and one female USB Type B connectors.
Monitor
  • Forward-folding 17" (432 mm) Active Matrix LCD flat panel VGA monitor.
  • 1280x1024 video resolution.
    • Supports SUN-compatible 1152x900 resolution.
  • Tilt: up to 120°
  • Sunlight readable monitor available (RACKMUX-VS17-TS, RACKMUX-VS17-NTS)
  • Frequency:
    • RACKMUX-VS17-T, RACKMUX-VS17-NT:
      • Horzontal: 31 to 80 KHz
      • Vertical: 56 to 76 Hz.
    • RACKMUX-VS17-TS, RACKMUX-VS17-NTS:
      • Horzontal: 53 to 79 KHz
      • Vertical: 50 to 75 Hz.
  • Brightness:
    • RACKMUX-VS17-T, RACKMUX-VS17-NT: 300 nits
    • RACKMUX-VS17-TS, RACKMUX-VS17-NTS: 500 nits indoors, 1100 nits outdoors
  • Contrast Ratio::
    • RACKMUX-VS17-T, RACKMUX-VS17-NT: 500:1
    • RACKMUX-VS17-TS, RACKMUX-VS17-NTS: 800:1
  • Supports DDC1 and DDC2B protocols.
  • OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
Devices
  • Keyboard available in: English(US).
    • RACKMUX-VS17-T: 97-key SUN-compatible keyboard with wrist-pad.
    • RACKMUX-VS17-NT: 114-key SUN compatible keyboard with numeric keypad.
  • Supports SUN keys including STOP, CUT, PASTE, COMPOSE, COPY, HELP, OPEN, UNDO, and PROPS.
  • Three button trackball mouse.
  • Front panel USB 1.1 port to connect external USB devices.
    • Female USB Type A connector.
Cables
  • 6-foot (1.8-meter) 15-pin HD VGA male to male cable included.
  • 6-foot (1.8-meter) USB Type A male to USB Type B male cable included.
  • 6-foot (1.8-meter) power supply cable included.
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
  • Power Consumption: 30 W
  • Maximum Inrush Current: 30A
MTBF
  • RACKMUX-VS17-T: 40,530 hrs.
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Dimensions
  • WxDxH: 19x23.9x1.75 Inches. (483x607x44 millimeters)
  • Weight: 26 lbs. (12 kg)
  • Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Application Drawings

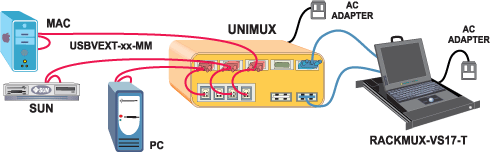

  • Rackmount SUN USB KVM Console Drawer 1RU
    Rackmount SUN USB KVM Console Drawer 1RU

CAD Drawings

  • Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers
    Loading image...

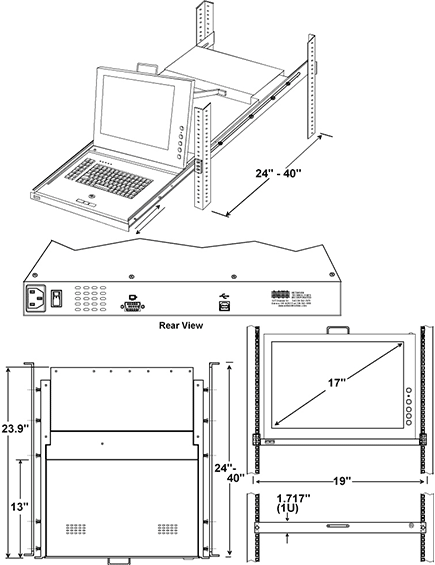

  • SUN USB KVM Drawer with SUN USB Keyboard (RACKMUX-VS17)
    Loading image...

Keyboard Layouts

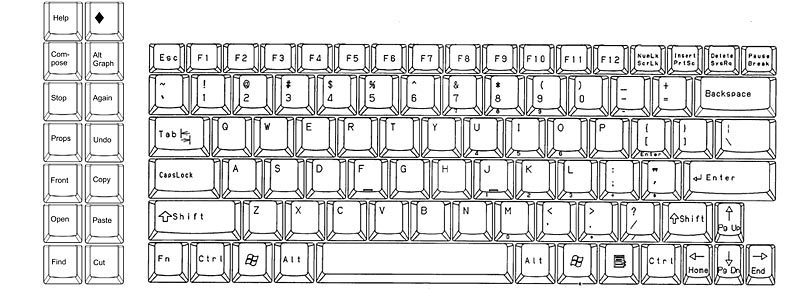

  • Rackmount SUN USB KVM Console Drawer
    Loading image...
    RACKMUX-VS17-T-8USBHD, RACKMUX-DS17-T, RACKMUX-VS17-T(S)

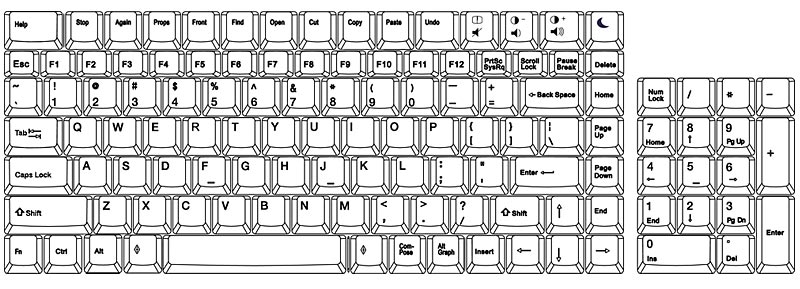

  • Rackmount SUN USB KVM Drawer with Numeric Keypad
    Loading image...
    RACKMUX-VS17-NT-8USBHD, RACKMUX-DS17-N(T)-xDVIHD, RACKMUX-DS17-NT, RACKMUX-VS17-NT(S)
Video:
User Manual:

(0)SUN USB KVM Drawers with VGA Monitor

NTI Part # Description Screen Size Video Resolution Qty
RACKMUX-VS17-T SUN USB KVM Drawer, Trackball mouse 17"
RACKMUX-VS17-NT SUN USB KVM Drawer, Trackball mouse, Numeric keypad 17"
RACKMUX-VS17-TS SUN USB KVM Drawer, Trackball mouse, Sunlight Readable monitor 17"
RACKMUX-VS17-NTS SUN USB KVM Drawer, Trackball mouse, Numeric keypad, Sunlight Readable monitor 17"

Related Items :

(0)Mounting Bracket

NTI Part # Description Qty
RL-T15-TEL Mounting bracket for two post style telco rack
