Transparent USB Extender with DVI Video, Audio and RS232 via Fiber

NTI Part #: ST-FOUSB2DARS-LC-Group

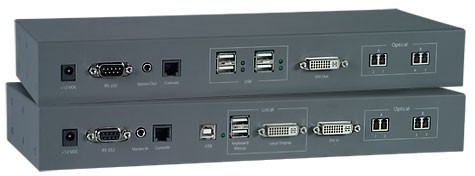

ST-FOUSB2DARS-LC (Remote and Local Unit)
ST-FOUSB2DARS-LC (Remote and Local Unit)
NTI Part #: ST-FOUSB2DARS-LC-Group
The XTENDEX® Transparent USB Extender with DVI Video, Audio and RS232 via Fiber extends four USB devices, audio, RS232, and a single link digital DVI display up to 6,500 feet via duplex singlemode fiber optic cable. Each DVI USB KVM Extender consists of a local unit that connects to a computer, and a remote unit that connects to four USB devices and a DVI display.
Also known as: Optical USB DVI Audio RS232 extender, remote keyboard mouse monitor printer usb device, dvi usb extension 6,500 feet long, dvi balun, DVI-D Optical Extension, DVI digital to singlemode fiber, fiber optic digital video extender
Product Highlight
  • WUXGA/1080p up to 6,500 ft (1,981 m)
  • Local and Remote Control
  • DVI/USB/Audio/RS232
  • ROHS Compliant Transparent USB Extender with DVI Video, Audio and RS232 via Fiber
  • CE Compliant Transparent USB Extender with DVI Video, Audio and RS232 via Fiber
  • FCC Compliant Transparent USB Extender with DVI Video, Audio and RS232 via Fiber
Scroll Down to Get Quote
The XTENDEX® Transparent USB Extender with DVI Video, Audio and RS232 via Fiber extends four USB devices, RS232, speakers and a single link digital DVI display up to 6,500 feet (1,981 meters) via two duplex singlemode LC fiber optic cables. Each DVI USB KVM Extender consists of a local unit that connects to a computer and provides local keyboard, monitor and mouse connections, and a remote unit that connects to four USB devices, a DVI display, and analog stereo audio speakers.
  • Supports fully transparent USB connections - supports all USB computers (PC, SUN and MAC) and their associated peripherals.
  • Signal transmission via four-strand singlemode or multimode LC fiber optic cable.
    • Using singlemode cable, extend to 6,500 feet (1,981 meters).
    • Using multimode cable, extend to 1,650 feet (503 meters).
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
  • Two modes of USB operation.
    • Local mode - computer sees USB devices connected to the transmitter.
    • Remote mode - computer sees USB devices connected to the receiver.
  • Cables can be installed in conduit prior to extender installation.
  • Extend USB devices such as keyboards, mice, printers, game controllers, flash drives, touch screen monitors, whiteboards, etc.
  • Compliant with USB 2.0 (low/full/high speed) standards.
  • Low RFI/EMI for sensitive applications.
  • Optical link is not susceptible to eavesdropping or electromagnetic interference
  • Includes rack mounting kit.
Local Unit
  • Host Connection
    • Supports USB computers (PC, SUN and MAC) with single link digital DVI video.
    • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
    • One female DVI-I, one female USB Type B, one 3.5 mm stereo audio jack, and one female DB9 connectors.
  • Local Access
    • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
    • One female DVI-I and two female USB Type A connectors.
Remote Unit
  • One female DVI-I, four female USB Type A, one 3.5 mm stereo audio jack, and one male DB9 connectors.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
  • Video signal: single link digital DVI.
  • Provides support for hi-speed (480 Mbps), full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.
    • Compatible with USB touch screen monitors, including HP Compaq L2105tm.
  • Audio signal: analog stereo audio.
    • Audio sampling rate: 48 KHz
    • Input impedance: >25Kohm
    • Output impedance: 100ohm
    • Frequency response: 40 Hz to 15 KHz ±1dB
    • Signal-to-Noise Ratio (SNR): >79 dBA
    • Total Harmonic Distortion + Noise (THD+N): <0.05%
    • Stereo crosstalk: -67dB @ 1 KHz
  • Supports RS232 up to 250Kbps
  • Compliant with DDWG DVI standard.
  • Supports the DDC2B protocol.
Max Distance
  • 1,650 feet (503 meters) over 50µm multimode LC fiber optic cable.
  • 6,500 feet (1,981 meters) over 9µm singlemode LC fiber optic cable.
Cables
  • Use a FIBER-2D-LCLC-50-xxM (2 duplex multimode LC 50-micron) multimode fiber optic cable to extend the receiver from the transmitter up to 1,650 feet (503 meters).
  • Use two duplex singlemode LC 9-micron fiber optic cable to extend the receiver from the transmitter up to 6,500 feet (1,981 meters).
  • Use SA-xx-MM male to male 3.5mm stereo audio cables to connect speakers.
  • Includes 6 ft (1.8 m) male to male DVI-I cable to connect a DVI source or display.
  • Includes 6 ft (1.8 m) male USB Type A to male USB Type B cable to connect source.
  • Includes 6 ft (1.8 m) male to male RS232 cable to connect a controller.
Power
  • Local and remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter (US AC adapter included).
  • Power consumption: 40W (each - transmitter and receiver).
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C)
  • Storage temperature: -14 to 185°F (-10 to 85°C)
  • Operating and Storage Relative Humidity: 5 to 85% non-condensing RH.
Dimensions WxDxH (in):
  • 12.6x5.1x1.75
Regulatory Approvals
  • CE, FCC, RoHS.
  • TAA compliant
Warranty
  • Two years

Application Drawings

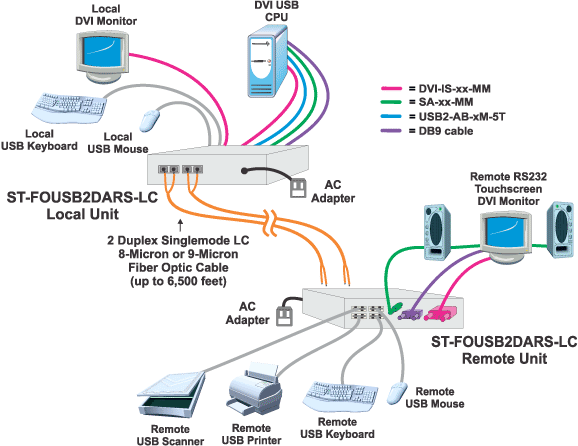

  • Transparent USB Extender with DVI Video, Audio and RS232 via Fiber
    Transparent USB Extender with DVI Video, Audio and RS232 via Fiber
    Extend four USB devices, RS232, speakers and a digital DVI display up to 6,500 feet (2,000 meters)

CAD Drawings

(0)Transparent USB Extender with DVI Video, Audio and RS232 via Fiber

NTI Part # Description Qty
ST-FOUSB2DARS-LC Transparent USB Extender with DVI Video, Audio and RS232 via Fiber

Collapse all Expand all Related Items :

(0)DVI-I Cables, Male to Male

NTI Part # Length Qty
DVI-IS-3-MM 3 feet
DVI-IS-6-MM 6 feet
DVI-IS-10-MM 10 feet

(0)USB 2.0 A-B Cables

NTI Part # Length Qty
USB2-AB-05M-5T 0.5 meters
USB2-AB-3-5T 3 feet
USB2-AB-6-5T 6 feet
USB2-AB-10-5T 10 feet
USB2-AB-15-5T 15 feet

(0)Fiber Optic Cables 2 Duplex LC 50-micron

NTI Part # Length Qty
FIBER-2D-LCLC-50-20M 20 meters
FIBER-2D-LCLC-50-30M 30 meters
FIBER-2D-LCLC-50-40M 40 meters
FIBER-2D-LCLC-50-50M 50 meters
FIBER-2D-LCLC-50-100M 100 meters
FIBER-2D-LCLC-50-300M 300 meters
FIBER-2D-LCLC-50-500M 500 meters

(0)Stereo Audio Cables - Male to Male

NTI Part # Length Qty
SA-3-MM 3 feet
SA-6-MM 6 feet
SA-10-MM 10 feet
SA-15-MM 15 feet
SA-25-MM 25 feet
SA-35-MM 35 feet
SA-50-MM 50 feet
SA-100-MM 100 feet
