DVI Video Splitter, multiple monitors one computer Dual Quad Display DVI distribution amplifier

DVI Video Splitter

NTI Part #: VOPEX-DVIS-2-Group

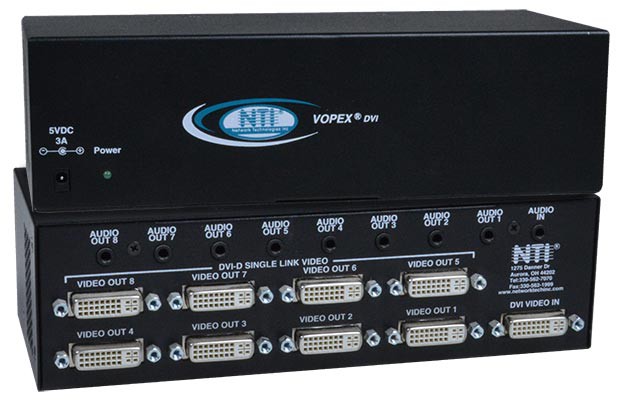

VOPEX-DVIS-8 (Front & Back)
VOPEX-DVIS-8 (Front & Back)
NTI Part #: VOPEX-DVIS-2-Group
The VOPEX® DVI Video Splitter enables up to 16 single link digital DVI displays to be driven by a single digital DVI source with no loss of signal.
Also known as: DVI splitter, video splitter, DVI video splitters, video distribution amplifier, PC video splitter, monitor splitter, multiple monitor, video port expander, dual DVI splitter, quad DVI Splitter.
Scroll Down to Get Quote
The VOPEX® DVI Video Splitter enables up to 16 single link digital DVI displays to be driven by a single digital DVI source with no loss of signal.
  • Supports DVI interface for crisp and clear video quality on flat panel displays.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1080 (2-/4-port) and 1920x1200 (8-/16-port).
  • Passes HDMI audio and video signal through DVI-I port.
    • Transmit audio and video over a single cable with the DVI-HDMI-xx-MM male DVI-D to male HDMI cable.
  • Available with optional stereo audio – call an NTI Product Consultant for more information.
  • Compliant with DVI 1.0 and HDCP standards.
  • Supports the DDC2B protocol.
  • EDID learning for the support of any DVI display device.
  • Cascade multiple units for more numerous display configurations.
  • Ideal for digital signage, tradeshows, or classrooms where high quality video on multiple monitors is needed.
Video Input
  • Compatible with a computer or HDTV video source (satellite receiver, DVD player, etc) with DVI output.
  • Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Female DVI-I connector.
  • Signal type: single link digital DVI
  • HDCP compliant
Video output
  • Female DVI-I connectors.
  • Signal type: single link digital DVI.
  • Resolutions: HDTV resolutions to 1080p and computer resolutions to 1920x1200 at 60 Hz.
  • HDCP compliant
Power
  • 2-, 4-and 8-port splitters: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific adapter included.)
  • 16-port splitter: 110 or 220 VAC at 50 or 60 Hz (Country-specific power supply cable is attached.)
Cables
  • One 3-foot (0.91-meter) single link DVI-D male-to-male cable included.
  • Use DVI-HD-xx-MM to connect an HDMI source or display (not included).

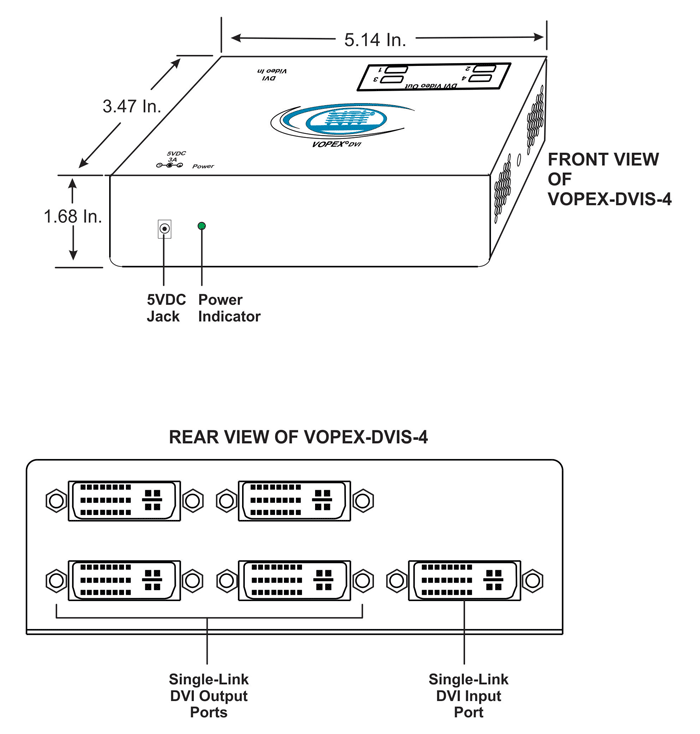

Dimensions
  • 2-port WxDxH: 5.13x3.45x1.09 in (130x88x28 mm)
  • 4-port WxDxH: 5.13x3.45x1.68 in (130x88x43 mm)
  • 8-port WxDxH: 8.33x3.45x1.68 in (212x88x43 mm)
  • 16-port WxDxH: 17.47x7.22x1.68 in (444x183x43 mm)
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • RoHS
Warranty
  • Two Years

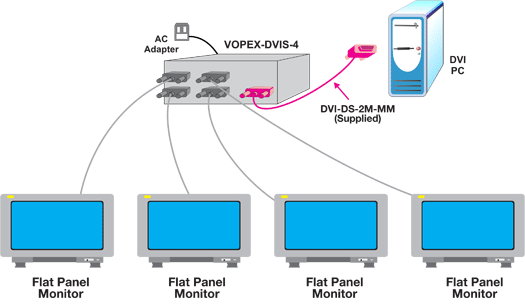

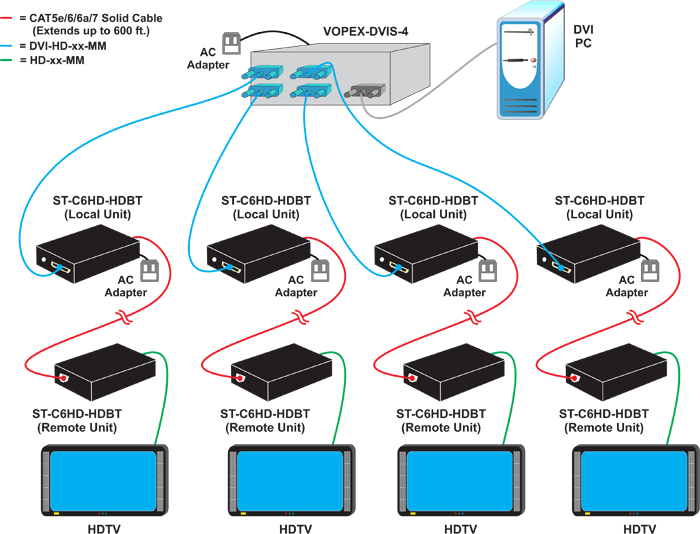

Application Drawings

  • DVI Video Splitter
    DVI Video Splitter
User Manual:
Data Sheet:

(0)DVI Video Splitter

NTI Part # Description Qty
VOPEX-DVIS-2 2-port DVI video splitter
VOPEX-DVIS-4 4-port DVI video splitter
VOPEX-DVIS-8 8-port DVI video splitter
VOPEX-DVIS-16 16-port DVI video splitter

Collapse all Expand all Related Items :

(0)DVI-I Cables, Male to Male

NTI Part # Length Qty
DVI-IS-3-MM 3 feet
DVI-IS-6-MM 6 feet
DVI-IS-10-MM 10 feet
DVI-IS-15-MM 15 feet

(0)DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Qty
DVI-HD-3-MM 3 feet
DVI-HD-6-MM 6 feet
DVI-HD-10-MM 10 feet
DVI-HD-15-MM 15 feet
