VGA Video/Audio Splitter

NTI Part #: VOPEX-2V-H-Group

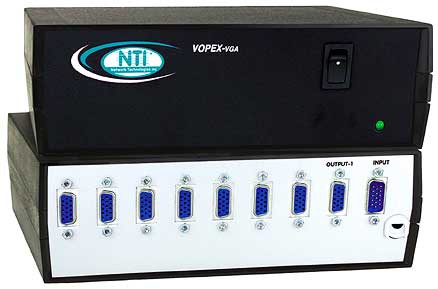

VOPEX-8V-H VGA Video Splitter (Front & Back) - split video to numerous monitors

NTI Part #: VOPEX-2V-H-Group

The VOPEX® VGA video splitter (video port expanders) enables up to 16 VGA monitors to be driven by a single PC. The same image is displayed on up to 256 monitors by cascading. It is available with optional stereo audio and/or rackmount enclosure.

Also known as: VGA splitter, video splitter, VGA video splitters, video distribution amplifier, PC video splitter, monitor splitter, <br />multiple monitor, video port expander, LCD Y splitter, multi-port video hub, split video to numerous VGA/SVGA UXGA/WUXGA displays.

Supported Features

Audio

Designed and Manufactured in the U.S.A.
VGA Video/Audio SplitterDigital Signage Product

Scroll Down to Get Quote

The VOPEX® VGA Video Splitter enables up to 16 VGA monitors to be driven by a single computer. The same image can be displayed on up to 256 monitors by cascading. The DDC2B protocol is supported from Output-1.

Supports VGA/SVGA UXGA/WUXGA monitors, including LCD flat panel monitors.
1900x1200 resolution with no degradation.

Supports the DDC2B protocol.
Available with optional stereo audio.
Burn-in monitors after repair.
Ideal for classrooms, tradeshows, or digital signage where high quality video on multiple monitors is needed.

Video Input

Male 15-pin HD input connector.
Supports a PC, SUN or MAC with VGA video.
Multiplatform support: Windows 2000/XP/Vista/Server 2000/ 2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Maximum input levels for video: 1.45Vp-p.
Input impedance: 75 Ohms.
Supports Separate and Composite TTL level sync and Sync On Green.
Sync input frequency ranges:
- Horizontal: 15 to 130 kHz.
- Vertical: 30 to 150 Hz

Video Output

Female 15-pin HD output connectors.
Crisp and clear 1900x1200 resolution.
Bandwidth is 150 MHz.
Maximum output levels for video: 1.45Vp-p.
Output impedance: 75 Ohms.
All outputs are individually buffered.
All monitors must be able to support the highest resolution of the DDC monitor connected to Output-1.

Optional Audio

3.5 mm stereo audio jacks.
Frequency response: 20 Hz to 20 kHz, ±1 dB.
Total Harmonic Distortion (THD): 0.012%
Stereo Crosstalk: -82 dB.
Input impedance: 10k Ohms.
CD quality audio output.
Requires powered speakers.

Environmental

Operating temperature: 32 to 100°F (0 to 38°C)
Storage temperature: -20 to 140°F (-30 to 60°C)
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Regulatory Approvals

RoHS

Warranty

Two years.

Power

110 or 220 VAC at 50 or 60 Hz.

Power Consumption
Model	Power (W)	Model	Power (W)
VOPEX-2V-H	5	VOPEX-2VA-H	5
VOPEX-4V-H	5	VOPEX-4VA-H	5
VOPEX-8V-H	5	VOPEX-8VA-H	10
VOPEX-16V-H	10

MTBF

MTBF
NTI Part #	MTBF (hrs)	NTI Part #	MTBF (hrs)
VOPEX-2V-H	175,784	VOPEX-2VA-H	166,448
VOPEX-4V-H	153,392	VOPEX-4VA-H	144,863
VOPEX-8V-H	135,708	VOPEX-8VA-H	125,808
VOPEX-16V-H	110,121

Cables

Extend 1900x1200 resolution to 50 feet (15 meters), and 1600x1200 to 100 feet (488x366 to 30 meters) with no degradation using NTI’s VEXT-xx cables.
3-foot (0.91-meter) VGA cable included.
3-foot (0.91-meter) audio cable included (with VOPEX-xVA-H).

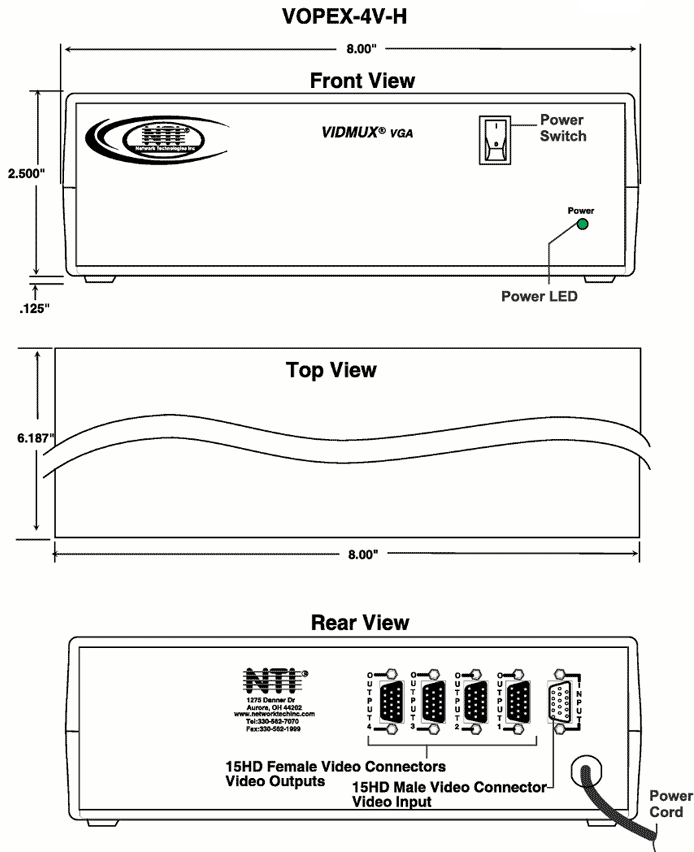

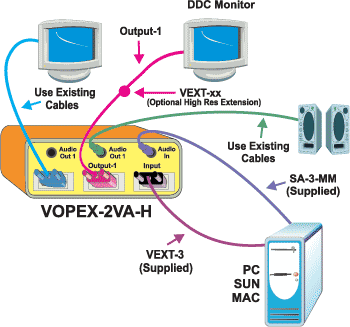

Application Drawings

Use one PC to display the same high-resolution image on 16 displays

Application Notes

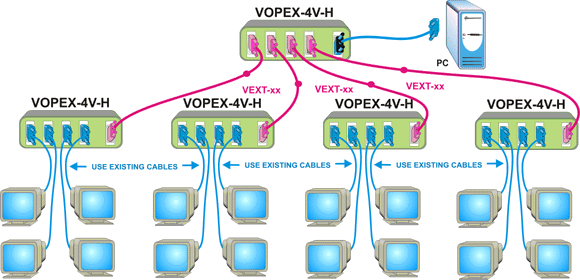

Drive up to 256 Monitors with 1 Computer

Cascade video splitters to display the same crisp and clear high-resolution image on a maximum of 256 monitors.

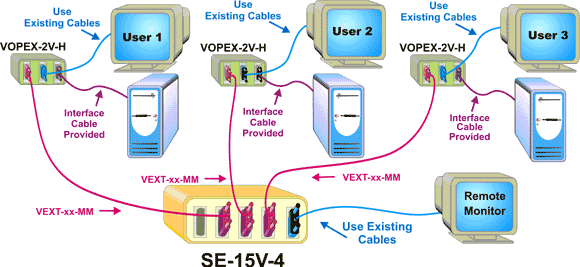

Switched and Local Display of 3 Computers

Each user can locally control and view their own computer. A remote monitor can display the output from any attached video inputs.

User Manual:

Video and Audio/Video Splitter Installation and Operation Manual 458 KB

Data Sheet:

VGA Video Splitter with Audio Option 248 KB

"The VOPEX-2V-H was perfect for us – we needed to have a monitor at our computer location and then run two 50' cables to two large 46" displays mounted on a wall outside my clean room, and this unit worked perfect."

Thomas Leszyk

Eaton Corporation

Horseheads, NY

"The NTI VOPEX-2V-H VGA Dual Video Driver served for a good 7-9 years in our plant. I did not even know it existed until it failed last week. Thanks for a good product"

Jody Derrick

Oklahoma Municipal Power Authority

Ponca City, OK, USA

"The VGA video splitters and cables are good and the service is great! I always get what I need when I need it. I always wait and order these parts for my projects last because I know I can have them in less then a week.

Your product knowledge and level of service is something I know I can count on."

Tom Boston

Draeger Medical, Inc.

Telford, PA, USA

(0)VGA Video Splitters

NTI Part #	Number of Ports	Dimensions WxDxH (in.)
VOPEX-2V-H	2	4.9x5.2x1.7
VOPEX-4V-H	4	8x6.2x2.6
VOPEX-8V-H	8	8x6.2x2.6
VOPEX-16V-H	16	10x7.5x3.3

(0)VGA Video/Audio Splitter

NTI Part #	Number of Ports	Dimensions WxDxH (in.)
VOPEX-2VA-H	2	4.9x5.2x1.7
VOPEX-4VA-H	4	8x6.2x2.6
VOPEX-8VA-H	8	8x6.2x2.6
