Display real-time 1080p video from four HDMI/DVI sources simultaneously on a single display.

Low-Cost HDMI Quad Screen Splitter/Multiviewer

NTI Part #: SPLITMUX-HD-4LC

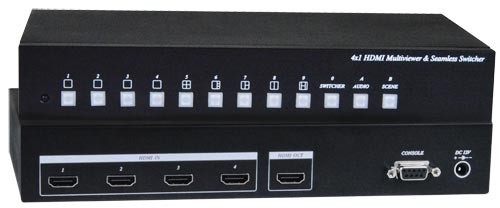

SPLITMUX-HD-4LC (Front & Back)
SPLITMUX-HD-4LC (Front & Back)
NTI Part #: SPLITMUX-HD-4LC
The SPLITMUX® Low-Cost HDMI Quad Screen Splitter/Multiviewer allows you to simultaneously display real-time HDMI video from four different sources on a single monitor. It is capable of displaying the video sources in quad, dual, PiP or full screen mode.
  • HDMI & DVI
  • Resolutions up to 1080p
  • Quad, Dual, Picture in Picture & Full Screen modes
  • ROHS Compliant Low-Cost HDMI Quad Screen Splitter/Multiviewer
  • Low-Cost HDMI Quad Screen Splitter/MultiviewerDigital Signage Product

Overview

The SPLITMUX® Low-Cost HDMI Quad Screen Splitter/Multiviewer allows you to simultaneously display real-time HDMI video from four different sources on a single monitor. It is capable of displaying the video sources in quad, dual, PiP or full screen mode.

  • Quad, Dual, Picture in Picture, and Full Screen display modes.
  • Supports HDTV resolutions to 1080p:
  • HDMI features supported:
    • 10-, 12-, and 16-bit xvYCC, RGB, and YCbCr.
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS, LPCM 7.1, and LPCM 2.
    • Bandwidth up to 340 MHz (8 Gbps)
    • Lip Sync
  • HDCP compliant.
  • Seamlessly scan between up to four sources at set intervals.
  • Fluid, real-time video performance with 60 frames per second (fps) in all four quadrants.
  • Switch audio independently of video from connected HDMI sources (e.g. source 1 and source 2 video are active while only source 3 audio is active).
  • Any DVI source can be connected by using the DVI-HD-xx-MM cable (not included).
  • Control the multiviewer through front panel buttons or IR remote.
  • Built-in EDID table

Specifications

Video Input
  • Four female HDMI connectors
  • Input resolutions: 480p, 576i, 720p, 1080i, 1080p.
  • Supports digital HDMI devices such as DVD/Blu-Ray players, satellite receivers and HDTV tuners.
  • A DVI source can be connected by using the
    DVI-HD-xx-MM cable (not included).
  • Supports HDCP 1.2
Video Output
  • One female HDMI connector.
  • Output resolutions: 720p, 1080p.
  • Supports HDCP 1.2
Power
  • Input: 100 to 240 VAC at 50 to 60 Hz via AC adapter. (US AC adapter included.)
    • Optional universal power plug adapters available (not included).
  • Output: 12 VDC, 1A
  • Power consumption: 7W.
Dimensions
  • WxDxH (in): 9.96x5.66x1.57 (253x144x40 mm)
Regulatory Approvals
  • RoHS
  • TAA compliant
Environmental
  • Operating temperature: 14 to 158°F (-10 to 70°C).
  • Storage temperature: -4 to 185°F (-20 to -85°C).
  • Operating and storage relative humidity: 95% non-condensing RH.
Cables
  • Use HD-xx-MM HDMI cables to connect to an HDMI source or display up to 100 feet away from the multiviewer.
    • Video Input: Supports HDMI cables up to 75ft
    • Video Output: Supports HDMI cables up to 100ft
  • Use DVI-HD-xx-MM cables to connect a DVI or HDMI source to the multiviewer.
  • Cables not included.
Warranty
  • Two years
Package Includes
  • One HDMI multiviewer
  • One 12V, 1A power supply
  • One IR remote
  • Wall mount screws
  • User manual

Application Drawings

  • Low-Cost HDMI Quad Screen Splitter/Multiviewer
    Low-Cost HDMI Quad Screen Splitter/Multiviewer
  • Display Mode Examples
