E-IMD-O
E-IMD-O

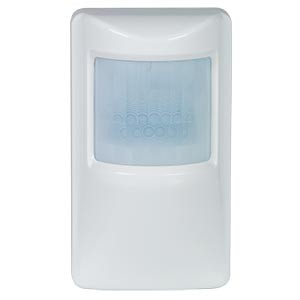

Outdoor Infrared Motion Detector

NTI Part #: E-IMD-O
Outdoor weatherproof - high reliability against water and insects. Double conductive shielding to eliminate false alarms from light sources.

Overview

  • Outdoor weatherproof - high reliability against water and insects
  • Double conductive shielding to eliminate false alarms from light sources
  • Registers movement in the area covered: 40 ft (12 m) x 50 ft (15 m) - 120° wide
  • LED lights during detection
  • Selectable detection paterns: Multi-Level (40 zones) or Pet Alley (18 zones)
  • Unwanted detection areas can be eliminated using the included area masking strips
  • Selectable Sensitivity: High, Mid and Low
  • Adjustable to the brightness of surrounding environment with the Day/Night Mode switch
  • Tamper switch opens when cover is removed
  • Screw terminal
    • To connect to the RJ45 inputs use CAT5/5e/6 cable terminated at one end with RJ45 connector. Connect the un-terminated end to the sensor screw terminal.
  • Operating temperature: -4 to 122°F (-20 to 50°C)
  • IP54 compliant
  • Current consumption: 25mA @ 12VDC.
  • Powered by E-2D/5D/16D.
